Produktbeskrivning

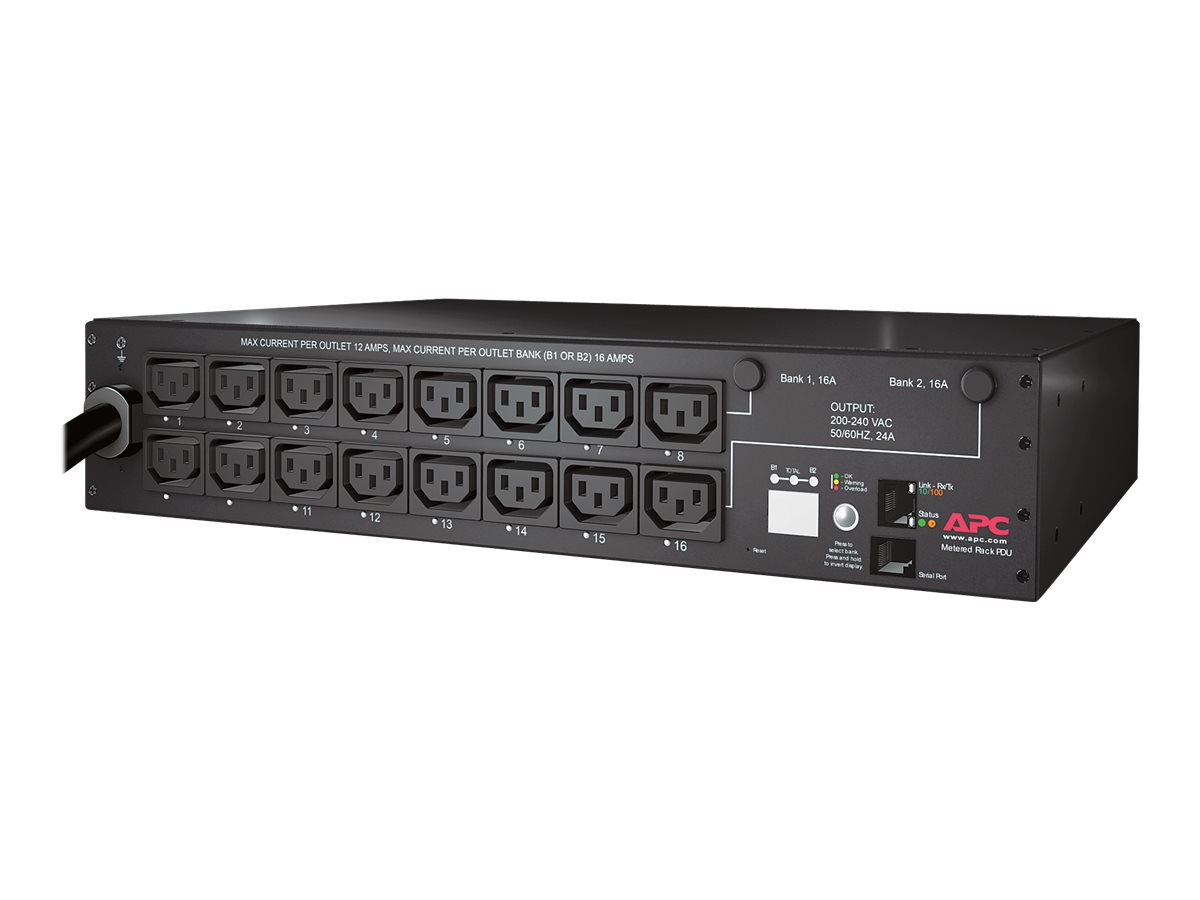

Switched Rack Power Distribution Units (PDUs) provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.



Egenskaper

Network management
Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Remote individual outlet control
Remotely manage outlets so users can turn outlets off that are not in use or recycle power to locked-up equipment.

Power delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Load indicator LED
This indicates overload and warning conditions based on the user-defined alarm thresholds, and alerts users of potential overloaded circuits.

Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.



Teknisk specifikation

Typ av enhet	Grenuttag - kan monteras i rack
Höjd (U-format)	2U
Sladdlängd	3.65 m
Färg	Svart

Inspänning	AC 208 V
Tillhandahållen frekvens	47 - 63 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x ström, NEMA L6-30
Kontaktdetaljer för uteffekt	16 x power IEC 60320 C13
Utspänning	AC 208 V ± 10% - 47 - 63 Hz
Max elektrisk ström	30 A
Kretsskydd	Strömbrytare

Gränssnitt för fjärradministration	Ethernet 10/100
Protokoll för administration på distans	SNMP, Telnet, HTTP

Gränssnitt	1 x hantering (Ethernet) - RJ-45 1 x hantering - RJ-11

Medföljande kablar	Strömkabel 3.65 m
Rackmonteringssats	Inkluderat
Standarder som följs	UL, cUL, ICES-003, UL 60950, FCC Part 15 A

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	0 - 95%

Bredd	44.45 cm
Djup	11.43 cm
Höjd	8.89 cm
Vikt	4.49 kg

Emballagets vikt	6.53 kg

Designat för

P/N: AP4431, AR106, AR106SH4, AR106SH6, AR109SH4, AR109SH6, AR112, AR112SH4, AR112SH6, AR2200, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106, AR3106SP, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR8213, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMLVUS, SMX3000HV-BR, SMX3000HVTUS, SMX3000LV2U-BR, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT10KRMXLT, SRT10KRMXLT-10KTF, SRT10KRMXLT30, SRT10KRMXLT-5KTF2, SRT10KXLT, SRT10KXLT30, SRT10KXLT-5KTF2, SRT10KXLTUS, SRT10KXLTW, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT3000RMXLT, SRT3000RMXLT-5KTF, SRT3000RMXLT-NC, SRT3000XLT, SRT3000XLT-5KTF, SRT3000XLTW, SRT5KRMXLT, SRT5KRMXLT-5KTF, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT5KXLJ, SRT5KXLT, SRT5KXLT-5KTF, SRT5KXLTUS, SRT6KRMXLT, SRT6KRMXLT-5KTF, SRT6KRMXLT-IEC, SRT6KXLT, SRT6KXLT-5KTF, SRT6KXLTUS, SRT6KXLTW, SRT8KRMXLT, SRT8KRMXLT30, SRT8KRMXLT-5KTF, SRT8KRMXLT-IEC, SRT8KXLJ, SRT8KXLT, SRT8KXLT30, SRT8KXLT-5KTF, SRT8KXLTUS, SURT5000XLIX438, SYAF16KRMICH
