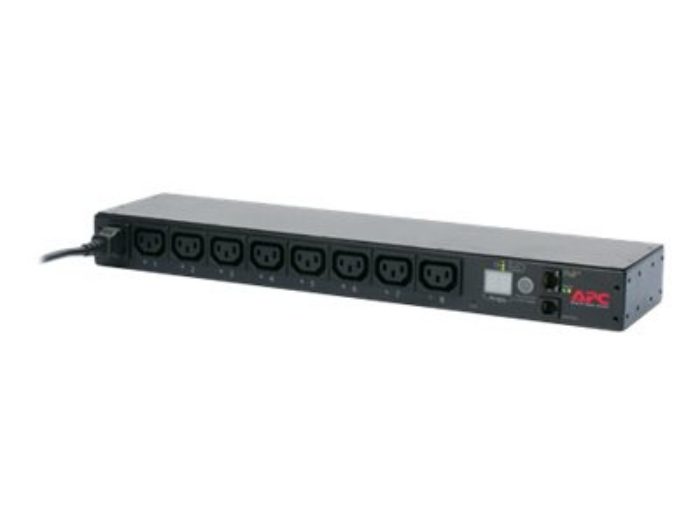

Produktbeskrivning

The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Full-featured network management interfaces that provide standards-based management via web, SNMP, and telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.



Egenskaper

Local current monitoring display
The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.

Alarm thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Remote management capabilities
Full-featured network management interfaces that provide standards-based management via web, SNMP, and telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Power delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependent on that unit will function properly.

Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120 V, 208 V, or 230 V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4 Kw using a single branch whip.

Rack-mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.



Teknisk specifikation

Typ av enhet	Grenuttag - extern
Höjd (U-format)	1U
Stativstorlek	19"
Färg	Svart

Inspänning	AC 200/208/230 V
Inspänningens område	AC 200-240 V
Inmatningsanslutningar	1 x ström IEC 60320 C14
Kontaktdetaljer för uteffekt	8 x power IEC 60320 C13
Utspänning	AC 208/230 V
Max elektrisk ström	15 A
Effektkapacitet	2300 VA

Gränssnitt för fjärradministration	Ethernet
Protokoll för administration på distans	SNMP, Telnet, HTTP

Gränssnitt	1 x hantering (Ethernet) - RJ-45

Medföljande kablar	Strömkabel 1.98 m
Rackmonteringssats	Inkluderat
Egenskaper	LCD-display, LED-display
Standarder som följs	FCC klass A-certifierad, UL, VCCI, C-Tick, cUL, ICES-003, IEC 61000-3-2, IEC 61000-3-3, VDE, EN55024, EN55022 klass A, RoHS, REACH SvHC

Medföljande programvara	Drivrutiner och hjälpprogram

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	0 - 95%

Bredd	44.5 cm
Djup	10.8 cm
Höjd	4.5 cm
Vikt	2.27 kg

Emballagets bredd	47 cm
Emballagets djup	34.3 cm
Emballagets höjd	7 cm
Emballagets vikt	3.45 kg

Designat för

P/N: AR106, AR106SH4, AR106SH6, AR106V, AR106VI, AR109SH4, AR109SH6, AR112SH4, AR112SH6, AR2487G, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3105W, AR3106, AR3106SP, AR3140G, AR3155W, AR3305W, AR3340G, AR3355SP, AR3355W, AR3357X674, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBPD0160A, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMT1000I-6W, SMT1000I-AR, SMT1000IC, SMT1000R2I-AR, SMT1000RMI2UC, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RM2UC, SMT1500RMI2UC, SMT1500RMI2UNC, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC, SMT3000RMI2UNC, SMT750IC, SMT750RMI2UC, SMT750RMI2UNC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMLVUS, SMX3000HV-BR, SMX3000HVTUS, SMX3000LV2U-BR, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750INC, SMX750US, SPD10KCBL, SPD20KCBL, SRC2000XLI-CC, SRC3KUXI, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT1500RMXLI, SRT1500XLI, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT2200XLI-KR, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000RMXLW-IEC, SRT3000XLI, SRT3000XLW-IEC, SRT5KRMXLI-6W, SRT5KRMXLIM, SRT5KRMXLTUS, SRT5KRMXLW-TW, SRT6KRMXLI-6W, SRT6KRMXLIM, SRT8KXLT-IEC, SUA1000ICH-45, SUA1500I-IN, SUA2200ICH-45, SUA3000I-IN, SURT1000RMXLI-NC, SURT1000XLI-NC, SYAF16KRMICH
