Produktbeskrivning

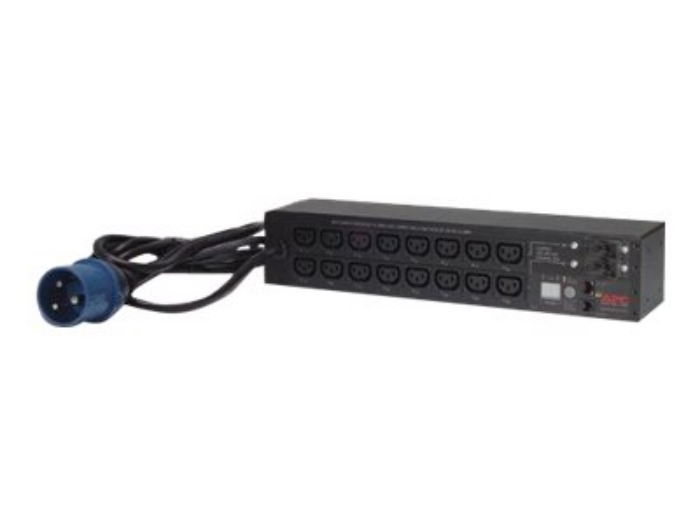

The APC by Schneider Electric Switched Rack Power Distribution Unit (PDU) distributes power to devices in the rack. It has a sensor that measures the current used by the PDU and its attached devices. It can be monitored through Web, Telnet, SNMP, SSH, or StruxureWare Data Center Expert interfaces.



Egenskaper

Network management
Full-featured network management interfaces that provide standards-based management via Web, SNMP and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Remote individual outlet control
Remotely manage outlets so users can turn outlets off that are not in use or recycle power to locked-up equipment.

Power delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Load indicator LED
This indicates overload and warning conditions based on the user-defined alarm thresholds, and alerts users of potential overloaded circuits.

Integrates with InfraStruXure Central
An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet - kan monteras i rack
Höjd (U-format)	2U
Sladdlängd	3.66 m

Inspänning	AC 230 V
Marginal för inspänning	± 10%
Erforderlig frekvens	47 - 63 Hz
Inmatningsanslutningar	1 x ström IEC 60309 32A
Kontaktdetaljer för uteffekt	16 x power IEC 60320 C13
Max elektrisk ström	32 A

Gränssnitt för fjärradministration	Ethernet 10/100
Protokoll för administration på distans	SNMP, Telnet, HTTP, SSH

Gränssnitt	1 x hantering (Ethernet) - RJ-45 1 x seriell - RJ-11

Medföljande kablar	Strömkabel 3.66 m
Egenskaper	LED-fönster, spänningsmätare, överbelastningsskydd
Standarder som följs	EN55022, VDE, EN55024, CISPR 22, AS/NZS, EAC

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	-5 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)

Bredd	44.45 cm
Djup	11.43 cm
Höjd	8.89 cm
Vikt	4.49 kg

Emballagets vikt	6.53 kg

Designat för

P/N: ACDC2513, AP7950B, AR106, AR112, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3150X617, AR3155SP, AR3155W, AR3157SP, AR3157X617, AR3180G, AR3300G, AR3300SP, AR3300W, AR3300X610, AR3300X617, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3350X617, AR3355SP, AR3355W, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X432, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR8213, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SCL400RMJ1U, SCL500RM1UC, SCL500RM1UNC, SCL500RMI1UC, SCL500RMI1UNC, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I-2U, SMC3000RMI2U, SMT1500RM1U, SMT1500RM2U, SMT1500RMI1U, SMT2200RM2UC, SMT3000I2U-BR, SMT3000RM2UC, SMTL1000RM2UC, SMTL1000RMI2UC, SMTL750RM2UC, SMTL750RMI2UC, SMX1000US, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750-NMC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT6KRMXLI, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SURT3000XLI-ET, SURT5000XLIX438, SYAF16KRMICH
