Produktbeskrivning

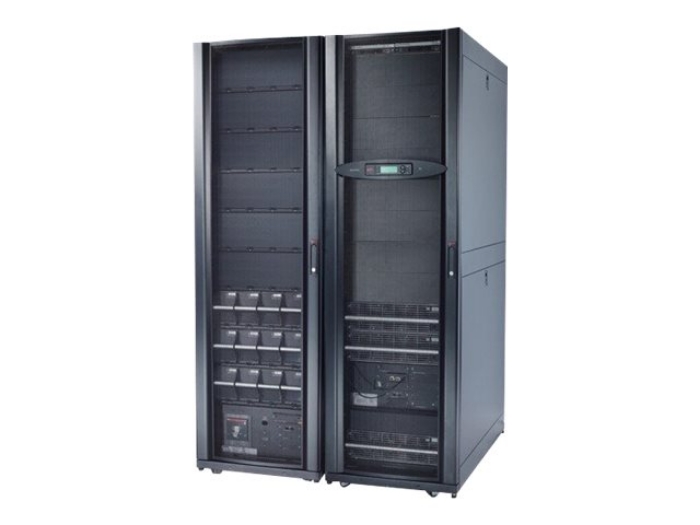

Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. It is suitable for small, medium and large data center applications.



Egenskaper

InfraStruXure central compatible
Enables centralized management via APC InfraStruXure central.

Modular design
It increases adaptability with an open architecture configurable to any IT environment.

Modular design
Modular construction - can be deployed as a non-standby and migrate to a standby (UPS) system.

LCD display
Alpha-Numeric Display which displays system parameters and alarms.

SmartSlot
Customize UPS capabilities with management cards.

Hot-swappable batteries
It ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Generator compatible
It ensures clean, uninterrupted power to protected equipment when generator power is used.

Battery modules connected in parallel
It delivers higher availability through redundant batteries.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Audible alarms
Provides notification of changing utility power and UPS conditions.

User-replaceable batteries
It increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Temperature-compensated battery charging
It prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable runtime
It allows additional run time to be quickly added as needed.

Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging.

Scalable power capacity
It reduces UPS over-sizing costs today by allowing quick upgrades later.

Programmable frequency
It ensures compatibility with different input frequencies.

Redundant intelligence modules
Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.

Power modules connected in parallel
It enhances availability by allowing immediate, seamless recovery from isolated module failures.

Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.

Manageable external batteries
Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.

Network manageable
It provides remote management of the UPS over the network.

Input power factor correction
It minimizes installation costs by enabling the use of smaller generators and cabling.

Front-access servicing
It simplifies installation and maintenance while minimizing space requirements.



Teknisk specifikation

Typ av enhet	Power Array - extern
Färg	Svart

UPS-teknik	Online
Inspänning	AC 400 V
Inspänningens område	Växelström 340 - 477 V
Tillhandahållen frekvens	50/60 Hz
Ingångskablage	3-fas
Erforderlig frekvens	40 - 70 Hz
Inmatningsanslutningar	1 x fast 5-trådig (3PH + N + G)
Kontaktdetaljer för uteffekt	1 x fast 5-trådig (3PH + N + G)
Utspänning	AC 230/380/400/415 V ± 2% - 50/60 Hz
Effektkapacitet	32 kW / 32000 VA
Utvågform	Sinusvåg
Spänningsavledning	Ja
Kretsskydd	Strömbrytare

Antal	3 (installerad) / 9 (stödd)
Teknik	Bly-syra
Tillförd spänning	192 V
Runtime (upp till)	6 min vid full laddning
Laddningstid	3.5 timmar

Gränssnitt	1 x EPO (emergency power off)
Expansionskortplatser	2 SmartSlot

Egenskaper	Hörbart larm, nödavstängning, LCD-bildskärm, inbyggd statisk förbikoppling, LED-indikatorer, överbelastningsskydd
Standarder som följs	IEC 62040-3, IEC 62040-1-1, EN 50091-1, NEMA Type 1, FCC Part 15 A

Service och support	Begränsad garanti - 1 år Installation

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	63 dBA

Bredd	120 cm
Djup	107 cm
Höjd	199 cm
Vikt	1029 kg

Emballagets bredd	170 cm
Emballagets djup	121 cm
Emballagets höjd	214 cm
Emballagets vikt	1124 kg
