Produktbeskrivning

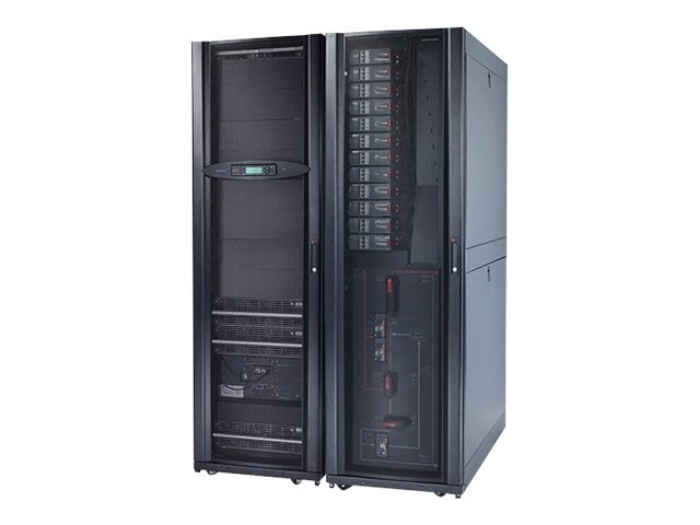

A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With hot-scalable power, distribution and run-time this UPS scales with your data center up to 160kW/160kVA. It is suitable for small to medium data centers or individual zones of large data centers.



Egenskaper

InfraStruXure central compatible
Enables centralized management via APC InfraStruXure central.

Modular design
It increases adaptability with an open architecture configurable to any IT environment.

LCD display
Alpha-numeric display displays system parameters and alarms.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

Generator compatible
It ensures clean, uninterrupted power to protected equipment when generator power is used.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overloads condition or fault.

Audible alarms
Provides notification of changing utility power and UPS conditions.

Temperature-compensated battery charging
It prolongs battery life by regulating the charge voltage according to battery temperature.

Scalable power capacity
It reduces UPS over-sizing costs today by allowing quick upgrades later.

Programmable frequency
It ensures compatibility with different input frequencies.

Redundant intelligence modules
Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.

Manageable external batteries
Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.

Configurable for N+1 internal redundancy
It provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.

Redundant intelligence modules
Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.

Scalable power capacity
It reduces UPS over-sizing costs today by allowing quick upgrades later.



Teknisk specifikation

Typ av enhet	Power Array - Effektfaktorkorrigering (PFC) - extern
Utrymme inuti inhägnad	42 U
Färg	Svart

UPS-teknik	Online
Inspänning	AC 380/400/415 V
Inspänningens område	Växelström 340 - 477 V
Tillhandahållen frekvens	50/60 Hz
Marginal för inspänning	± 5%
Ingångskablage	3-fas
Erforderlig frekvens	40 - 70 Hz
Inmatningsanslutningar	Fast 5-trådig (3PH + N + G)
Kontaktdetaljer för uteffekt	1 x fast 5-trådig (3PH + N + G)
Utspänning	AC 230/380/400/415 V ± 2% - 50/60 Hz
Effektkapacitet	32 kW / 32000 VA
Utvågform	Sinusvåg

Antal	3 (installerad) / 6 (stödd)
Teknik	Bly-syra
Tillförd spänning	192 V
Runtime (upp till)	5.8 min vid full laddning
Laddningstid	3.5 timmar

Gränssnitt	1 x EPO (emergency power off)
Expansionskortplatser	2 SmartSlot

Egenskaper	Hörbart larm, nödavstängning, LCD-bildskärm, inbyggd statisk förbikoppling, intern förbikoppling, LED-indikatorer
Standarder som följs	IEC 62040-3, IEC 62040-1-1, EN 50091-1, FCC Part 15 A

Service och support	Begränsad garanti - installation - 1 år - på platsen

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	61 dBA

Bredd	120 cm
Djup	107 cm
Höjd	199 cm
Vikt	1095 kg

Emballagets bredd	170 cm
Emballagets djup	121 cm
Emballagets höjd	214 cm
Emballagets vikt	1189 kg
