Produktbeskrivning

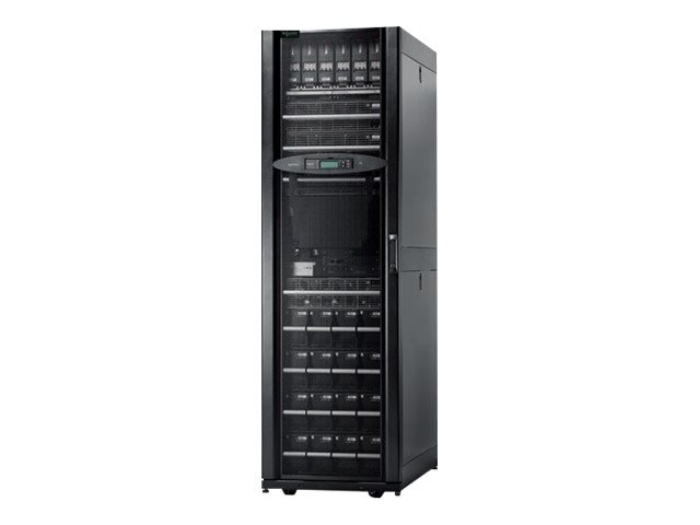

Hot-scalable power, runtime and distribution in a high-density single frame design. This high-efficiency 3-phase UPS scales as your data center grows up to 48kW/48kVA. It is suitable for small and medium data center applications.



Egenskaper

Battery modules connected in parallel
It delivers higher availability through redundant batteries.

Configurable for N+1 internal redundancy
This provides high availabilty through redundancy by allowing configuration with one more power module than is necessary to support the connected load.

Dual mains input
It increases availability by allowing the UPS to be connected to two separate power sources.

InfraStruXure manager compatible
Enables centralized management via the APC InfraStruXure manager.

Input power factor correction
It minimizes installation costs by enabling the use of smaller generators and cabling.

Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging.

Programmable frequency
It ensures compatibility with different input frequencies.

Redundant intelligence modules
Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.

Scalable power capacity
It reduces UPS over-sizing costs today by allowing quick upgrades later.

Scalable runtime
It allows additional run time to be quickly added as needed.

Temperature-compensated battery charging
This prolongs battery life by regulating the charge voltage according to battery temperature.



Teknisk specifikation

Typ av enhet	Power Array - Effektfaktorkorrigering (PFC) - extern
Höjd (U-format)	42U
Färg	Svart

UPS-teknik	Online
Inspänning	AC 400 V
Inspänningens område	Växelström 340 - 477 V
Tillhandahållen frekvens	50/60 Hz
Marginal för inspänning	± 5%
Ingångskablage	3-fas
Erforderlig frekvens	40 - 70 Hz
Inmatningsanslutningar	Fast 5-trådig (3PH + N + G)
Kontaktdetaljer för uteffekt	1 x fast 5-trådig (3PH + N + G)
Utspänning	AC 230/380/400/415 V ± 2% - 50/60 Hz
Effektkapacitet	48 kW / 48000 VA
Utvågform	Sinusvåg
Kretsskydd	Säkring

Antal	16
Tillförd spänning	192 V
Runtime (upp till)	4.6 min vid full laddning
Laddningstid	3 timmar

Gränssnitt	1 x EPO (emergency power off)
Expansionskortplatser	2 SmartSlot

Egenskaper	Hörbart larm, nödavstängning, LCD-bildskärm, inbyggd statisk förbikoppling
Standarder som följs	IEC 62040-3, IEC 62040-1-1, EN 50091-1, FCC Part 15 A, NEMA TP-1

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	0 - 95%
Ljudnivå	61 dBA

Bredd	60 cm
Djup	107 cm
Höjd	199 cm
Vikt	796 kg

Emballagets bredd	84.8 cm
Emballagets djup	121 cm
Emballagets höjd	214 cm
Emballagets vikt	858 kg
