Produktbeskrivning

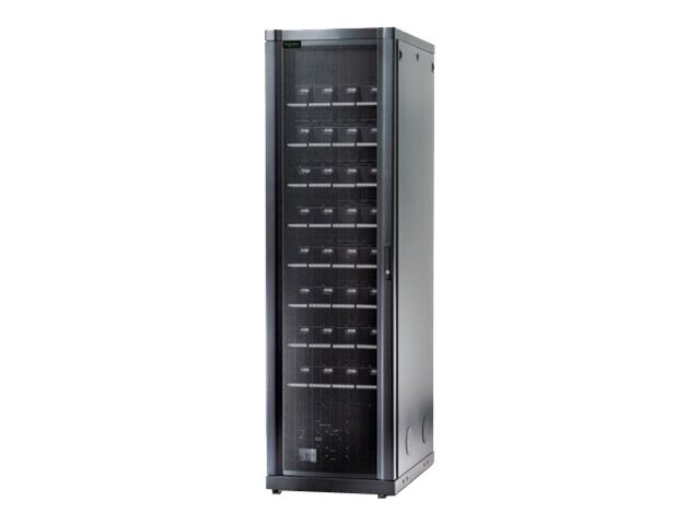

APC Symmetra PX is a high-performance redundant scalable power protection system that allows you to cost-effectively guarantee very high availability of protected systems. Symmetra PX is a fully modular system, ready for seamless integration into state-of-the-art data centers. It consists of dedicated and redundant modules - power, control, battery and bypass modules. All of them feature easy serviceability, and are designed to scale power and runtime according to changing requirements. The Symmetra PX acts as the central power system for APC InfraStruXure systems in small and medium-sized data centers, but it works equally well as a "zone" power system in larger centers. Among the features of the Symmetra PX system that facilitate management, self-diagnostic functions and module standardization that reduce the risk of human error are particularly noteworthy.



Egenskaper

● Hot Swap Batteries;
● Intelligent Battery Management.



Teknisk specifikation

Typ av enhet	Batterihölje - extern
Batterityp	Insticksmodul
Antal installerade enheter / moduler	8 (installerad) / 8 (max)
Färg	Svart

Inspänning	AC 208 V
Inmatningsanslutningar	1 x fast

Antal	8 (installerad) / 8 (stödd)

Service och support	Begränsad garanti - delar - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Min temperatur vid förvaring	-15 °C
Max temperatur vid förvaring	45 °C
Luftfuktighet vid drift	0 - 95%
Luftfuktighet vid lagring	0 - 95%

Bredd	55.9 cm
Djup	86.4 cm
Höjd	208.3 cm
Vikt	954.6 kg

Designat för	APC Symmetra 6kVA, 8KVA, 8KVA (Expandable to 16KVA), 8kVA Scalable to 16kVA N+1, 8kVA Scalable to 8kVA N+1
