Produktbeskrivning

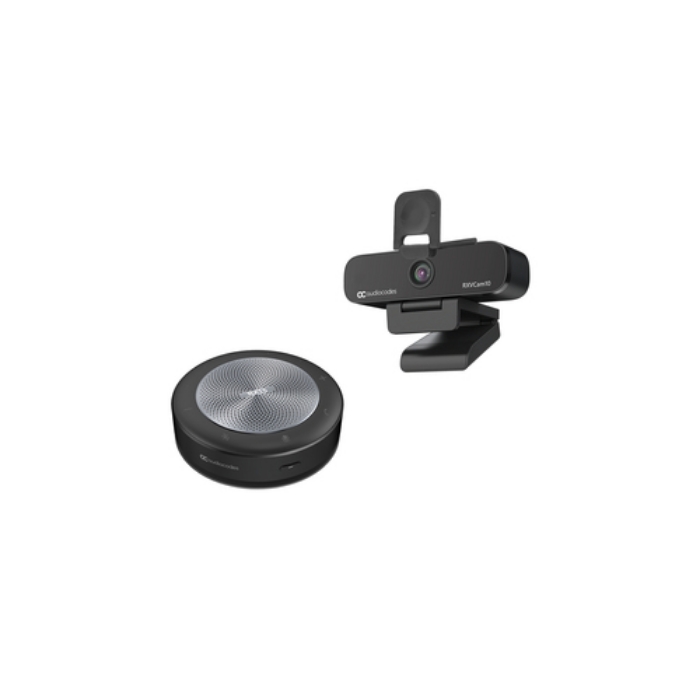

The RXVCam10-B10 is the ideal bundle for the mobile worker. The bundle includes the RXVCam10 HD Camera that can be used for individual or huddle room environments.The RXVCam10 is certified for use with Microsoft Teams, and is compatible with all unified communication platforms including Zoom. It mounts easily on a laptop or monitor and has USB plug and play functionality. The bundle also includes the RX15 Speakerphone--a versatile device specially designed to provide a high quality voice experience for up to eight people in smaller meeting rooms such as huddle rooms. Fully in keeping with the new era of hybrid work, it can also be easily connected to a laptop, PC or other mobile device to enable clear online meetings from home, personal office rooms or on the road. As part of the AudioCodes Room Experience (RX) Suite and personal space devices, the RX15 Speakerphone ensures exceptional sound quality with leading UC solutions, such as Microsoft Teams and Zoom Phone.



Viktiga egenskaper

AudioCodes HD Video USB Camera and Portable USB Speaker Bundle 10. Product type: Personal video conferencing system, Number of persons: 1 person(s). Sensor type: CMOS. HD type: Full HD, Maximum frame rate: 30 fps. Digital zoom: 3x. Bluetooth, Product colour: Black



Teknisk specifikation

Product type	Personal video conferencing system
Number of persons	1 person(s)
Number of cameras	1
Bluetooth	Yes
Bluetooth version	4.2
Product colour	Black
Signal-to-Noise Ratio (SNR)	75 dB

Compliance certificates	CE,Federal Communications Commission (FCC)

HD type	Full HD
Maximum video resolution	1920 x 1080 pixels
Supported graphics resolutions	160 x 120,320 x 180,320 x 240,432 x 240,480 x 272,640 x 360,640 x 480 (VGA),800 x 448,800 x 600 (SVGA),960 x 540,960 x 720,1024 x 576 (WSVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080)
Maximum frame rate	30 fps
Video formats supported	H.264,H.265,M-JPEG

Built-in speaker(s)	Yes
Number of speakers	1
Frequency range	150 - 16000 Hz
Output voltage Total Harmonic Distortion (THD)	4 %
Microphone pick-up range	2.5 m

USB connector type	USB Type-C
USB 2.0 ports quantity	1
AUX in (speaker)	Yes

Ethernet LAN	No

Megapixel (approx.)	2 MP
Camera type	Single camera
Zoom capability	Yes
Digital zoom	3 x
Sensor type	CMOS
Focal length range	3.24 mm
Horizontal field of view	85 °
Vertical field of view	52 °
Diagonal field of view	92 °
Minimum illumination	0.5 lx
Privacy camera	Yes
Privacy type	Privacy shutter

Viewing angle, vertical	52 °
Viewing angle, horizontal	85 °

Microphone colour	Black
Microphone sensitivity	38 dB
Microphone frequency	150 - 8000 Hz
Sound pressure level (max)	65 dB
Number of microphone arrays	6

Mounting type	Clip/Stand

Firmware upgradeable	Yes

Sustainability compliance	Yes

Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	20 - 95 %

Power source type	Battery,USB
Current	2 A
DC input voltage	5 V
Battery capacity	2200 mAh
Power consumption (typical)	2.5 W
Battery technology	Lithium-Ion (Li-Ion)

Speaker dimensions (WxDxH)	120 x 120 x 35.2 mm
Speaker weight	395 g
Camera dimensions (WxDxH)	102 x 30 x 46 mm
Camera weight	150 g

Cables included	USB Type-C
Manual	Yes
