Produktbeskrivning

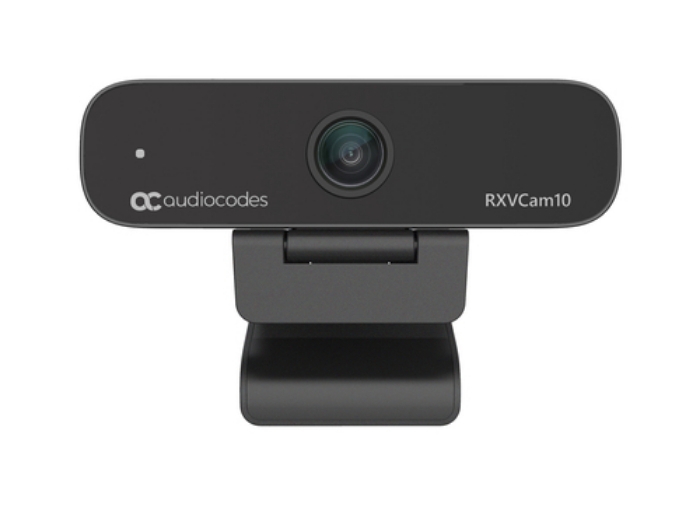

The AudioCodes RXVCam10-CC content camera enables whiteboard content to be shared between physically present and remote meeting participants. In conjunction with Microsoft Teams AI content enhancement capabilities, the RXVCam10-CC simplifies team collaboration and brainstorming in hybrid meetings.

Easy whiteboard sharing during Microsoft Teams meetings
Based on the RXVCam10 personal webcam, the RXVCAM10-CC content camera enables effortless whiteboard sharing for all participants during Microsoft Teams meetings. It provides 1080p full HD real-time video with a 3x digital zoom and is also equipped with a privacy shutter.

The RXVCam10-CC is designed for durability and is easy to install in any meeting room thanks to its adjustable whiteboard mount accessory.

Advanced Features Deliver Sharp Whiteboard Content
In conjunction with Microsoft Teams AI, the RXVCam10-CC offers intelligent whiteboard detection and automatically adjusts the frame to include the entire whiteboard. It also offers additional content enhancements such as image sharpening, contrast adjustment and overlaying a transparent view of the presenter.



Viktiga egenskaper

AudioCodes RXVCam10-CC. Megapixel (approx.): 2 MP, Sensor type: CMOS. HD type: Full HD, Maximum video resolution: 1920 x 1080 pixels, Maximum frame rate: 30 fps. Digital zoom: 3x. Product colour: Black



Teknisk specifikation

Megapixel (approx.)	2 MP
Camera type	Single camera
Sensor type	CMOS
Zoom capability	Yes
Digital zoom	3 x
Focal length range	3.24 mm
Horizontal field of view	85 °
Vertical field of view	52 °
Minimum illumination	0.5 lx
Signal-to-Noise Ratio (SNR)	50 dB
Privacy camera	Yes
Privacy type	Privacy shutter

Maximum video resolution	1920 x 1080 pixels
Maximum frame rate	30 fps
HD type	Full HD
Video formats supported	H.264,H.265,M-JPEG,YUV2
Supported graphics resolutions	160 x 120,320 x 180,320 x 240,432 x 240,480 x 272,640 x 360,640 x 480 (VGA),800 x 448,800 x 600 (SVGA),960 x 540,960 x 720,1024 x 576 (WSVGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080)

Product colour	Black

USB 2.0 ports quantity	1

Power source type	USB
DC input voltage	5 V
Power consumption (typical)	2.5 W

Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	20 - 95 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	20 - 80 %

Cables included	USB
USB cable length	1.8 m
Screws included	Yes

Firmware upgradeable	Yes

Compliance certificates	CE,Federal Communications Commission (FCC),Industry Canada (IC),RCM

Width	102 mm
Depth	46 mm
Height	30 mm
Weight	150 g
