Produktbeskrivning

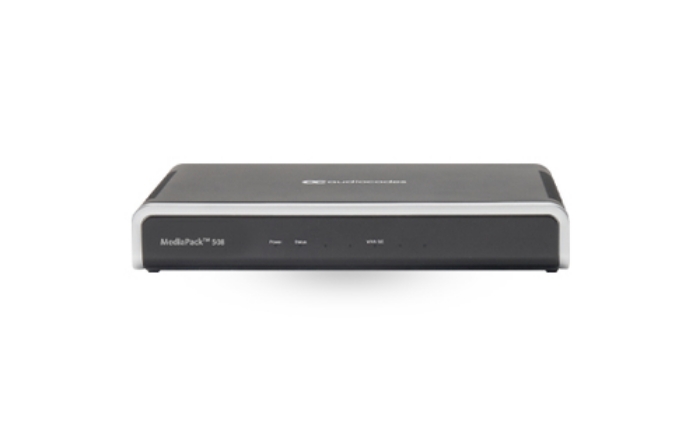

The AudioCodes MediaPack 5xx series of analog VoIP gateways provide service providers and enterprises with superior voice technology for connecting legacy telephones, fax machines and PBX systems with IP telephony networks, IP-PBX systems and unified communications solutions.

MediaPack 5xx gateways offer comprehensive SIP interoperability with leading vendors, delivering secure and reliable communications for enterprises and branch office locations.

The MediaPack 5xx series is compatible with the Microsoft SIP Gateway to enable the direct integration of analog devices with Microsoft Teams Phone.

Comprehensive interoperability
Proven interoperability with SIP trunks, SIP platforms and IP cloud services

Superior voice quality
Advanced capabilities for optimizing and monitoring voice service quality

Enhanced capabilities
Includes MWI, long haul, metering tones generation and caller ID

All-in-one option
Option to add data routing capabilities within the same device

High resiliency
Standalone survivability (SAS) and fallback to PSTN for E911 (emergency number PSTN breakthrough) or upon network/power failure



Viktiga egenskaper

AudioCodes MP-504. Product colour: Grey, Mounting type: Desktop/Rack mounting. Voice codecs: G.711, G.722, G.723.1, G.729A. Management protocols: SIP-TCP, SIP-UDP, SIP-TLS, Supported network protocols: IPv6. Ethernet LAN data rates: 10,100,1000 Mbit/s, Modulation: FSK, Cabling technology: 10/100/1000Base-T(X). Authentication method: User



Teknisk specifikation

Product colour	Grey
Mounting type	Desktop/Rack mounting
Certification	CE, FCC

Voice codecs	G.711,G.722,G.723.1,G.729A

Control display unit	No

Management protocols	SIP-TCP, SIP-UDP, SIP-TLS
DHCP client	Yes
Supported network protocols	IPv6

Ethernet LAN data rates	10,100,1000 Mbit/s
Modulation	FSK
Cabling technology	10/100/1000Base-T(X)

VLAN support	Yes
Firewall security	Yes
Authentication method	User

Ethernet LAN (RJ-45) ports	1

Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Input current	0.8 A

Height	51 mm
Depth	160 mm
Width	296 mm
Weight	670 g

Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-25 - 85 °C
Operating relative humidity (H-H)	10 - 90 %
