Produktbeskrivning

On-site meetings often involve a greater number of participants. As such, effective video and audio collaboration in larger rooms requires the careful consideration of factors such as voice pickup range, visual coverage, and unified communications integration to ensure truly productive meetings. AudioCodes’ RXV100 bundles featuring the RXVCam50M for video bring meetings to life and deliver the optimal collaboration experience for everyone. The RX40 Audio bar with speakers included in the RXV100-B42 bundle allows your large space to have superior audio quality with the included auxillary speakers.



Viktiga egenskaper

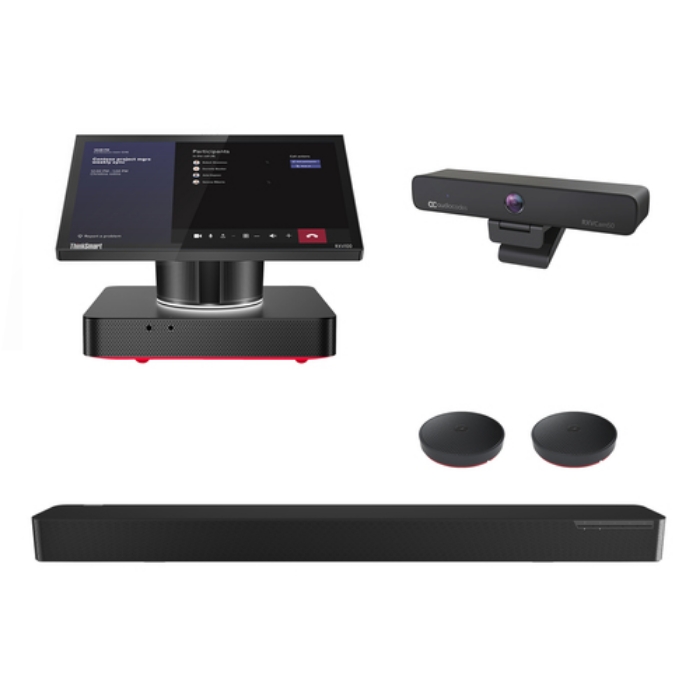

AudioCodes RXV100 Hub with Audio bundled with RXVCam50M and RX40 (Audio Bar with satellite speakers) for use up to large rooms. Compatible with Teams or Zoom. Product type: Multimedia congress terminal, Number of persons: 16 person(s). Sensor type: CMOS. Supported video modes: 480p, 720p, 1080p. Digital zoom: 10x. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 25.6 cm (10.1"), Display resolution: 1920 x 1080 pixels. Operating system installed: Windows 10 IoT Enterprise SAC. Product colour: Black



Teknisk specifikation

Product type	Multimedia congress terminal
Number of persons	16 person(s)
Bluetooth	Yes
Bluetooth version	5.0
Product colour	Black
PTZ control	Yes

Supported video modes	480p,720p,1080p
Supported graphics resolutions	640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080)
Aspect ratio	16:10
Video formats supported	H.264,H.265,MJPG,YUY2

Built-in speaker(s)	Yes
Number of speakers	4
RMS rated power	6 W

Internal memory	8192 MB
Internal memory type	DDR4
Storage media type	SSD
Total storage capacity	128 GB

HDMI ports quantity	3
HDMI output ports quantity	2
HDMI input ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1

Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac)

Camera type	Single camera
Zoom capability	Yes
Digital zoom	10 x
Effective sensor resolution	8.28 MP
Sensor type	CMOS
Image sensor size	1/2.5 "
Horizontal field of view	120 °
Vertical field of view	85 °
Diagonal field of view	126 °
Minimum illumination	0.1 lx

Built-in display	Yes
Display diagonal	10.1 "
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
Display brightness	320 cd/m²
Anti-glare screen	Yes

Microphone direction type	Omnidirectional
Number of microphones	4

Telepresence	No
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8365U
Operating system installed	Windows 10 IoT Enterprise SAC
Windows operating systems supported	Windows 10,Windows 7,Windows 8.1
Mac operating systems supported	Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina
Other operating systems supported	Linux

Minimum RAM	2048 MB
Minimum processor speed	2.4 GHz
Minimum system requirements	Intel® Core™2 Duo

Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	20 - 80 %

Current	1 A
Operating voltage (microphone)	5 V

Speaker dimensions (WxDxH)	800 x 56 x 90 mm
Speaker weight	3600 g
Camera dimensions (WxDxH)	220 x 93.75 x 56.5 mm
Width	240 mm
Depth	200 mm
Height	185.3 mm
Weight	2470 g

Cables included	USB
Manual	Yes
Remote control included	Yes
