Produktbeskrivning

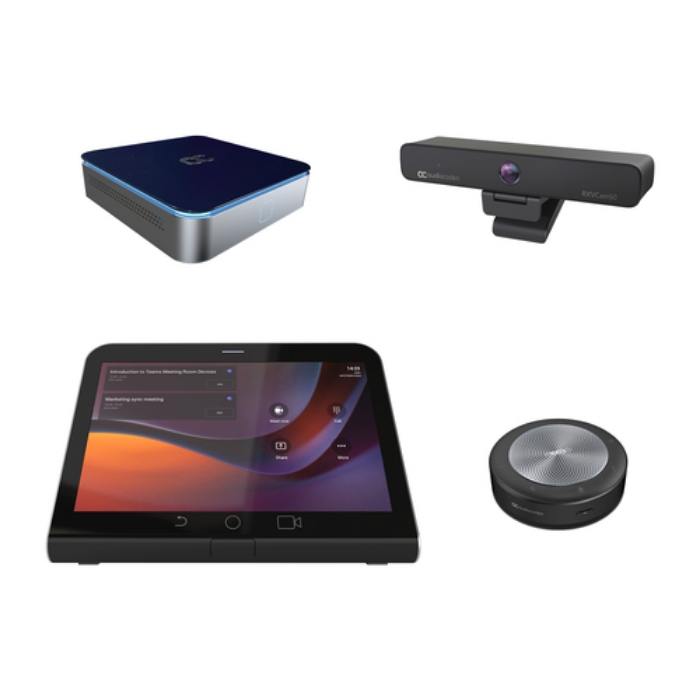

The RXV200-B20 bundle takes your small to medium space to a complete meeting room with compute device (RXV200), camera (RXVCam50M), meeting room controller (RX-PAD), and speakerphone (RX15).Modern meeting devices must be adaptable enough to accommodate any room size or shape, while minimizing the number of table-mounted accessories and devices apart from a microphone and a meeting room controller like the AudioCodes RX-PAD. The RXV200 Android compute MTR is a robust, dependable and adaptable solution that enables an easy upgrade of any component within the meeting room, thereby facilitating the adoption of new and advanced devices to keep up with latest technology trends without excessive expenditure. Together with the RX-PAD meeting controller, it provides an easy meeting room experience that significantly boosts productivity.



Viktiga egenskaper

AudioCodes RXV200 Compute Device for small to mid size meeting rooms. The Bundle also Includes the RXPanel, RX15 Speakerphone and RXVCam50M. Product type: Group video conferencing system, Number of persons: 10 person(s). Sensor type: CCD. HD type: 4K Ultra HD. Digital zoom: 10x. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 20.3 cm (8"), Display resolution: 1280 x 800 pixels. Operating system installed: Android. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Number of persons	10 person(s)
Number of cameras	1
Bluetooth	Yes
Bluetooth version	5.1
Product colour	Black
Signal-to-Noise Ratio (SNR)	75 dB
PTZ control	Yes

HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Supported graphics resolutions	640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),3840 x 2160
Aspect ratio	16:9
Resolution at capture speed	640x480@25fps,640x480@30fps,1280x720@25fps,1280x720@30fps,1920x1080@25fps,1920x1080@30fps,3840x2160@30fps

Built-in speaker(s)	Yes
Number of speakers	1
Frequency range	150 - 16000 Hz
Output voltage Total Harmonic Distortion (THD)	4 %
Automatic gain control	Yes
Microphone pick-up range	2.5 m

USB connector type	USB Type-A,USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1

Interface module HDMI ports quantity	3
Interface module HDMI input ports quantity	1
Interface module HDMI output ports quantity	2

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Networking standards	IEEE 802.1Q,IEEE 802.1p
Supported network protocols	TCP/IP (IPv4)
Quality of Service (QoS) support	Yes
VLAN support	Yes
Security algorithms	256-bit AES,802.1x RADIUS,SRTP,TLS

Megapixel (approx.)	8.28 MP
Camera type	Single camera
Zoom capability	Yes
Digital zoom	10 x
Sensor type	CCD
Image sensor size	1/2.5 "
Focal length range	2.26 mm
Horizontal field of view	100 °
Vertical field of view	64 °
Diagonal field of view	102 °
3D NR (Noise Reduction)	Yes
Minimum illumination	0.1 lx

Built-in display	Yes
Display diagonal	8 "
Display resolution	1280 x 800 pixels
Touchscreen	Yes

Microphone colour	Black
Microphone sensitivity	38 dB
Microphone frequency	150 - 8000 Hz
Sound pressure level (max)	65 dB
Number of microphone arrays	6

Computer system type	Mini PC
Processor family	Snapdragon
Processor model	QCS8250
Operating system installed	Android

Cable lock slot	Yes
Cable lock slot type	Kensington

Operating relative humidity (H-H)	20 - 80 %
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	20 - 90 %
Operating temperature (T-T)	-10 - 50 °C

Power source type	DC
Current	3 A
DC input voltage	12 V

Interface module dimensions (W x D x H)	170 x 170 x 41.3 mm
Interface module weight	750 g
Speaker dimensions (WxDxH)	120 x 120 x 35.2 mm
Speaker weight	395 g
Camera dimensions (WxDxH)	220 x 93.75 x 56.5 mm
