Produktbeskrivning

The RXV200-B360 bundle includes the center-of-room RXVCam360 panoramic video camera with built-in speakers and microphones and is ideal for small/medium rooms with participants seated around a round table.



Viktiga egenskaper

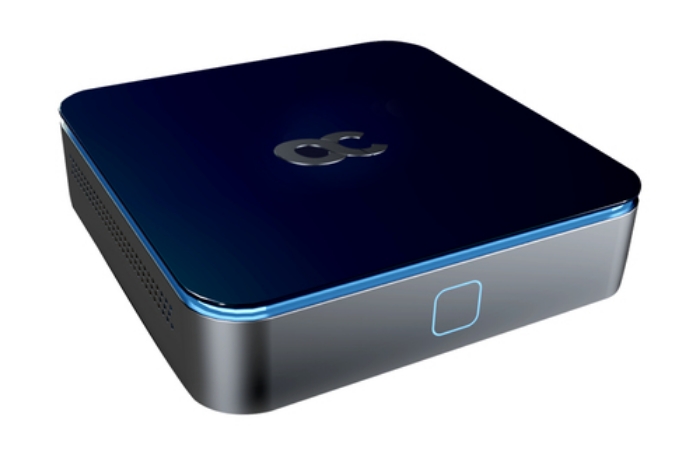

AudioCodes RXV200 Compute Device for small to mid size meeting rooms. The Bundle also Includes the RXPanel, RX15 Speakerphone and RXVCam50M. Product type: Group video conferencing system, Number of persons: 18 person(s). HD type: 4K Ultra HD, Maximum frame rate: 30 fps. Field of view (FOV) angle: 360°. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 20.3 cm (8"), Display resolution: 1280 x 800 pixels. Operating system installed: Android. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Number of persons	18 person(s)
Number of cameras	1
Bluetooth	Yes
Bluetooth version	5.0
Product colour	Black

HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Supported graphics resolutions	640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440,3840 x 2160
Maximum frame rate	30 fps
Aspect ratio	16:9
Video formats supported	MJPG,NV12,YUV
Resolution at capture speed	640x480@30fps,1280x720@30fps,1920x1080@30fps,2560x1440@30fps,3840x2160@30fps

Built-in speaker(s)	Yes
Number of speakers	1
Frequency range	100 - 20000 Hz
Output voltage Total Harmonic Distortion (THD)	5 %
Automatic gain control	Yes
Microphone pick-up range	3 m
RMS rated power	8 W

USB connector type	USB Type-A,USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

Interface module HDMI ports quantity	3
Interface module HDMI input ports quantity	1
Interface module HDMI output ports quantity	2
Interface module Ethernet LAN (RJ-45) ports	1

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
Networking standards	IEEE 802.1Q,IEEE 802.1p
Supported network protocols	TCP/IP (IPv4)
VLAN support	Yes
Quality of Service (QoS) support	Yes
Security algorithms	256-bit AES

Megapixel (approx.)	5 MP
Camera type	Quad camera
Zoom capability	Yes
Effective sensor resolution	5 MP
Image sensor size	1/2.7 "
Focal length range	2.49 mm
Field of view (FOV) angle	360 °

Built-in display	Yes
Display diagonal	8 "
Display resolution	1280 x 800 pixels
Touchscreen	Yes

Microphone colour	Black
Microphone sensitivity	38 dB
Microphone frequency	100 - 8000 Hz
Microphone mute	Yes
Sound pressure level (max)	75 dB
Number of microphones	4

Computer system type	Mini PC
Processor family	Snapdragon
Processor model	QCS8250
Operating system installed	Android

Cable lock slot	Yes
Cable lock slot type	Kensington

Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	20 - 90 %
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	-10 - 50 °C

Power source type	DC
Current	3 A
DC input voltage	12 V

Interface module dimensions (W x D x H)	170 x 170 x 41.3 mm
Interface module weight	750 g
Camera dimensions (WxDxH)	84.5 x 84.5 x 274.9 mm
Camera weight	800 g

Cables included	LAN (RJ-45),USB Type-C
AC adapter included	Yes
Packaging content	✓ RXV200 ✓ RXVCam360 ✓ RX-PAD ✓ 12V 3A Power Adapter (100-240V) ✓ USB Type C cable ✓ Ethernet cable
