Produktbeskrivning

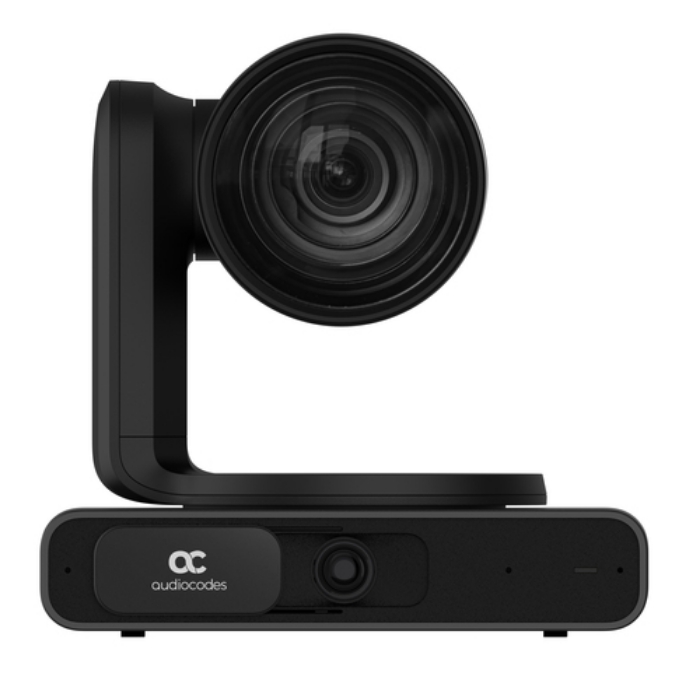

The AudioCodes RXVCam70 is a 4K dual-lens PTZ video camera designed for medium and large meeting rooms.

Boasting a 12x optical zoom close-up lens, a 119º DFOV panoramic lens and built-in mic array, the RXV70 delivers an optimal audio and video meeting experience for all participants. Advanced built-in AI features, including auto-framing, speaker tracking and smart gallery, ensure that every moment of every meeting is captured automatically.

The RXVCam70 complements AudioCodes solution bundles for medium-large Android and Windows Microsoft Teams Rooms, helping you create an optimized environment for hybrid Teams meetings.

Dual 4K Lens
Two 4K sensors for total room coverage

Speaker Tracking
Automatically identifies and tracks speakers

Auto Framing
Adjusts field of view according to number of people in the room

Smart Gallery
Displays all participants in separate close-up frames

RXVCam70 PTZ Camera Benefits
- Deliver a dynamic and engaging meeting experience with advanced AI-powered features
- Ideal for hybrid sessions ensuring all participants can be seen and heard regardless of location
- Seamless integration with AudioCodes MTR systems for a streamlined hybrid video conferencing experience.
- Easy to install and operate via the AudioCodes RX-PAD room controller



Viktiga egenskaper

AudioCodes RXVCam70. Megapixel (approx.): 8.42 MP, Sensor type: CMOS. HD type: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, Supported video modes: 360p, 720p, 1080p, Maximum frame rate: 30 fps. Optical zoom: 12x, Digital zoom: 16x. Product colour: Black



Teknisk specifikation

Megapixel (approx.)	8.42 MP
Camera type	Single camera
Sensor type	CMOS
Optical sensor size	1/1.8 "
Zoom capability	Yes
Optical zoom	12 x
Digital zoom	16 x
Focal length range	4.8 - 57.8 mm
Minimum illumination	0.5 lx
Signal-to-Noise Ratio (SNR)	55 dB
Aperture range (F-F)	1.8 - 3.6
White balance	Auto,Indoor,Manual,Outdoor
3D NR (Noise Reduction)	Yes

Maximum video resolution	3840 x 2160 pixels
Maximum frame rate	30 fps
HD type	4K Ultra HD
Resolution at capture speed	320x240@25fps,320x240@30fps,640x360@25fps,640x360@30fps,640x480@25fps,640x480@30fps,960x540@30fps
Supported video modes	360p,720p,1080p
Video formats supported	H.264,MJPG,YUV
Supported graphics resolutions	320 x 240,320 x 288 (QVGA),480 x 270,640 x 360,640 x 480 (VGA),800 x 600 (SVGA),960 x 540,1024 x 576 (WSVGA)

Product colour	Black
Tilt angle range	0 - 90 °
Pan range	0 - 170 °

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power source type	AC,DC
DC input voltage	12 V
Power consumption (max)	20 W
DC current (max)	2 A

Operating temperature (T-T)	-10 - 40 °C
Storage temperature (T-T)	-40 - 60 °C

Built-in microphone	Yes
Number of microphones	3
Microphone pick-up range	8 m

Auto framing	Yes
Tracking modes	Presenter mode
Cable lock slot	Yes
Cable lock slot type	Kensington

Remote control included	Yes
Cables included	LAN (RJ-45),USB
Mounting kit	Yes

Width	181 mm
Depth	178.4 mm
Height	151.5 mm
Weight	2300 g

Package width	245 mm
Package depth	295 mm
Package height	240 mm
Package type	Box
