Produktbeskrivning

The AudioCodes RXV81 is a standalone Microsoft Teams Rooms on Android™ (MTR) video bar that takes plug-and-play simplicity to another level, resulting in a familiar and exceptionally productive Microsoft Teams meeting experience. When bundled with the RX-PAD as the room's sleek touch controller, the user can easily set up and control meetings in any type of room via a central controller. The RXV81 embedded speakers and 6 mics, as well as Full HD and ePTZ with 5x zoom, provides outstanding image clarity and enhanced voice quality, making every meeting interactive and personable, as remote participants can see and hear everyone in the room, and can also participate in full Teams video and content sharing sessions.



Viktiga egenskaper

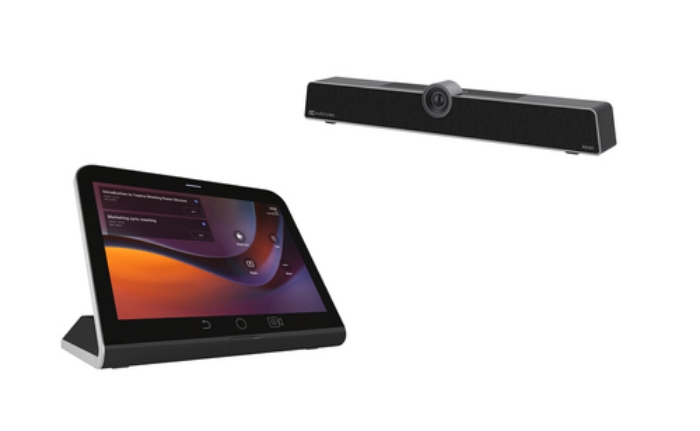

AudioCodes Teams RXV81 Video Collaboration Bar with built-in audio bundled 10 with RX-PAD Room Touch Controller. Product type: Group video conferencing system. HD type: 4K Ultra HD. Digital zoom: 5x. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 20.3 cm (8"), Display resolution: 1280 x 800 pixels. Operating system installed: Android 9. Product colour: Black



Teknisk specifikation

Product type	Group video conferencing system
Bluetooth	Yes
Bluetooth version	5.0
Product colour	Black
Tilt angle range	-15 - 15 °
PTZ control	Yes

HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Resolution at capture speed	1920x1080@30fps

Built-in speaker(s)	Yes
Number of speakers	1
Audio system full duplex	Yes
Echo cancellation	Yes
Noise reduction	Yes
Clear Voice technology	Yes
Microphone pick-up range	4.5 m
RMS rated power	10 W

HDMI ports quantity	1
HDMI output ports quantity	1
USB connector type	USB Type-A,USB Type-C
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	2
Power over Ethernet (PoE) ports quantity	1
AUX in (speaker)	Yes

Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Networking standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.1x
Supported network protocols	TCP/IP (IPv4)
Quality of Service (QoS) support	Yes
VLAN support	Yes
Security algorithms	256-bit AES,SRTP,TLS

Camera type	Single camera
Zoom capability	Yes
Digital zoom	5 x
Horizontal field of view	110 °
Vertical field of view	75 °
Diagonal field of view	120 °
Remote control interface	Bluetooth

Built-in display	Yes
Display diagonal	8 "
Display resolution	1280 x 800 pixels
Touchscreen	Yes

Number of microphone arrays	6

Operating system installed	Android 9

Power source type	DC
Current	3 A
DC input voltage	12 V

Remote control dimensions (W x H x D)	212 x 128.4 x 152.8 mm
Remote control weight	908 g
