Produktbeskrivning

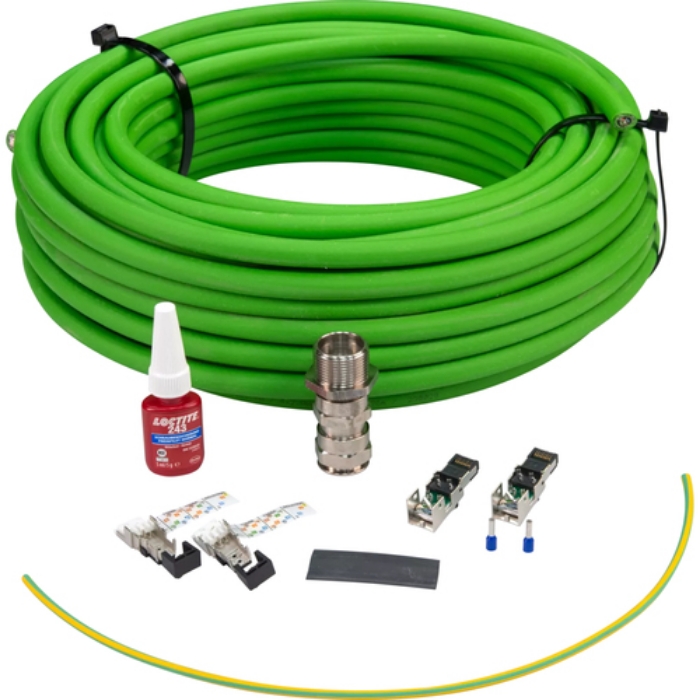

ASKD02-T Armored Cable Kit

This armored data cable is specially designed for hazardous areas in accordance with IEC/EN 60079-14 for use in arctic and tropical temperatures, -60 °C to 80 °C (-76 °F to 176 °F). ASKD02-T Armored Cable Kit is a cable for Industrial Ethernet and power installations in dry, wet, or damp locations. The cable meets the transmission characteristics for Cat 6A of IEC 61156-5 Edition 2. It is halogen-free and resistant to mechanical stress, oils, and greases.



Viktiga egenskaper

Axis 03309-001. Cable length: 95 m, Cable standard: Cat6a, Connector 1: RJ-45, Connector 2: RJ-45, Product colour: Green



Teknisk specifikation

Cable length	95 m
Cable standard	Cat6a
Product colour	Green
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Male
Connector 2 form factor	Straight
Connector 1 form factor	Straight
Connector 2 gender	Male/Female
Jacket material	Polyurethane (PUR)
Cable shape	Round
AWG wire size	23/1
Certification	EN 60079-14:2014, IEC 60079-14:2013, EN 50288-10-1, IEC 61156-5, EN 50173, ISO/IEC 11801 2. edition, IEC 60754-2, UL AWM 21586, EN 60332-1-2, IEC 60811-404, ATEX, IECEX, INMETRO, KCs

Operating temperature (T-T)	-60 - 80 °C
Storage temperature (T-T)	-30 - 80 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Weight	17100 g

Doesn't contain	BFR,CFR,PVC
Compliance certificates	REACH,RoHS
