Produktbeskrivning

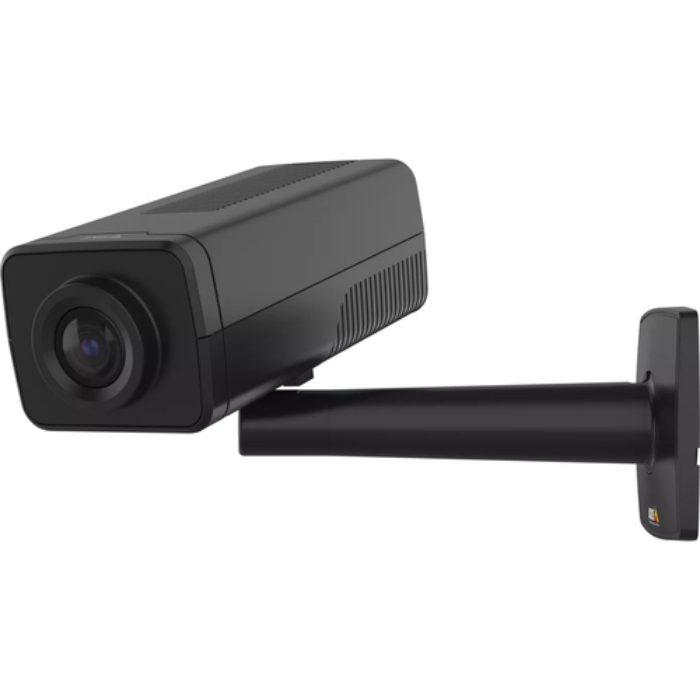

Built on ARTPEC-9, this AI-powered block camera offers accelerated performance and lets you run impressive analytics applications on the edge. It’s possible to use your existing housing or upgrade to new housing, making it a more environmentally friendly option.

Superior image quality
AXIS Q1728 offers 4K resolution at 60 fps and features a large 1/1.2" sensor to ensure consistent performance even in low light. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great forensic detail in challenging light or near darkness. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements. What’s more, it’s available in two variants with a choice of lenses: a wide (6-13 mm) lens with a 108°-49° horizontal field of view for surveillance in wide, open areas, and a tele (15-48 mm) lens with a 42°-13° horizontal field of view for great detail at long distances. Plus, the built-in lens with remote zoom and focus is perfectly calibrated to save you time and effort.

Flexible today and tomorrow
With the flexibility to use various types of enclosures, this compact and lightweight camera with integrated optics helps ensure you preserve the value of your investment. That’s because it has a standardized design that can fit into most enclosures including Axis, third-party housing, and custom enclosures. It’s also backward compatible so you can mount it in your existing outdoor enclosure. Plus, this future-proof camera can also be mounted in new enclosures ensuring you have the flexibility to respond to future requirements.

ARTPEC-9 for unmatched performance
ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

Powerful with strong security
Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under exposed, or redirected. In addition, AXIS Live Privacy Shield address-es privacy laws and regulations and offers AI-based dynamic masking so you can detect movement and activities while safeguarding privacy. Furthermore, Axis Edge Vault, a hardware-based cybersecurity plat-form, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.



Viktiga egenskaper

Axis Q1728. Type: IP security camera, Placement supported: Outdoor, PTZ modes: Digital PTZ. Mounting type: Pole clamp, Product colour: Black, Form factor: Box. Camera pixel size: 2.9 µm, Camera shutter speed: 1/66500 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.2 mm (1 / 1.2"). Lens diameter: 1.3 cm, Normal focusing range: 0.5 m



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Luminous flux	0.05 lm

Form factor	Box
Mounting type	Pole clamp
Product colour	Black
Housing material	Aluminium,Plastic

Camera pixel size	2.9 µm
Camera shutter speed	1/66500 s

Sensor type	CMOS
Optical sensor size	1/1.2 "

Number of lenses	1
Lens diameter	13 mm
Auto focus	Yes
Normal focusing range	0.5 m

Night vision	Yes

Maximum resolution	3840 x 2160 pixels
Video formats supported	AV1,H.264,H.265,M-JPEG
Supported graphics resolutions	2560 x 1600 (WQXGA),2592 x 1944,3840 x 2160
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Gain control type	Auto
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness

Audio formats supported	AAC-LC,ADPCM,G.711,G.726,LPCM,OPUS
Signal-to-Noise Ratio (SNR)	55 dB

Ethernet LAN	Yes
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v

Built-in HDD	Yes
HDD capacity	4 GB
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	8000 MB

Ethernet LAN (RJ-45) ports	1
RS-422 ports	1
RS-485 ports	1
Headphone outputs	1

Security algorithms	EAP-TLS,HTTPS,PEAP,TLS

Power source type	DC
Power consumption (typical)	7.5 W
Power consumption (max)	12.95 W
DC output voltage	10,12,15,16,24,28

Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Weight	529 g

Number of cameras	1
