Produktbeskrivning

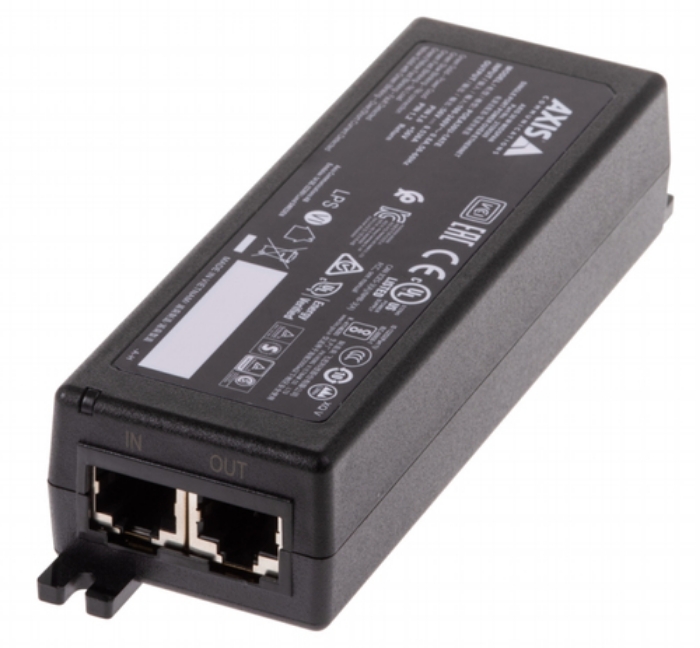

AXIS 30 W Midspan is a 1-port midspan that can deliver up to 30 W to one network device. It is IEEE 802.3af (15 W) and IEEE 802.3at (30 W) compliant, which ensures compatibility with most Axis network products with built-in PoE. Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for powering network products. In a single network cable, a PoE midspan injects power and data to the network device with built-in PoE support. No need to replace existing Ethernet switches and cabling infrastructure.



Viktiga egenskaper

Axis 02172-002. Type: Midspan, Brand compatibility: Axis, Product colour: Black. Rated power: 30 W, Input voltage: 100-240 V, Input frequency: 47-63 Hz. Width: 46 mm, Depth: 140.1 mm, Height: 30 mm



Teknisk specifikation

Type	Midspan
Brand compatibility	Axis
Compatibility	M5054, M5055, M5065, M5525-E, P5414-E, P5415-E, P5654-E, P5655-E, Q6074, Q6074-E, Q6075, Q6075-E, Q6128-E, Q6154-E, Q6155-E, M1065-L, M1134, M1135, M1135-E, M1137, M1137-E, M1145-L, M2025-LE, M2026-LE Mk II, P1214, P1214-E, P1224-E, P1244, P1245, P1254, P
Product colour	Black
Housing material	Plastic
LED indicators	Yes
Certification	IS 13252,UL 60950-1, UL 62368-1, CCC, EMC EN 55024, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A, CISPR 24, EAC, IEC 60068-2-1, IEC 600

Ethernet LAN	Yes

Rated power	30 W
Input voltage	100-240 V
Input frequency	47-63 Hz
Output voltage	56 V

Height	30 mm
Width	46 mm
Depth	140.1 mm
Weight	145 g

Quick installation guide	Yes

Operating temperature (T-T)	-20 - 40 °C
Operating relative humidity (H-H)	-40 - 75 %

Doesn't contain	Halogen,PVC

Harmonized System (HS) code	85299020
