Produktbeskrivning

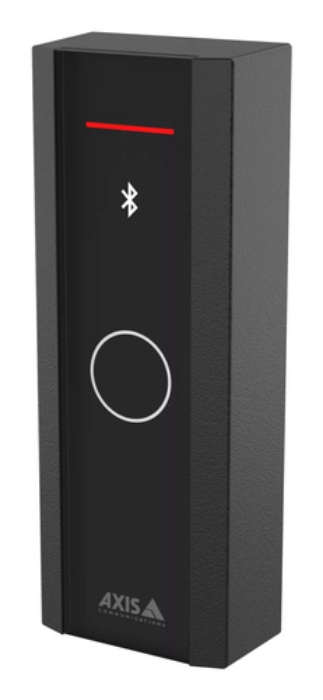

Ideal both indoors and outdoors, this sleek and durable Bluetooth reader offers convenient access using your mobile phone as well as RFID cards. Easy to install in tight spaces, it supports PoE for easy installation.

With Bluetooth technology, AXIS A4612 makes it easy for visitors to access your premises by simply tapping in the AXIS Mobile Credential application. In fact, they can even leave their phone in their pocket, and just tap the reader itself. It also supports most types of RFID card standards with 13.56MHz credential technologies. Suitable for both small and larger installations, this cost-effective device offers flexible and easy installation. With one device, you can manage the full door including the door lock and door position sensors.

Sleek and reliable

Featuring a mullion-mount design, AXIS A4612 is ideal for installation in areas where you’re tight on space and fits perfectly in narrow areas and door frame installations. And it’s ready to be installed both indoors and outdoors. Furthermore, the glass front panel is scratch-resistant, so you can be sure it’ll remain scratch-free even after years of daily use.

Powered by IP

AXIS A4612 is easy to install, using Power over Ethernet (PoE) to connect to the closest network switch with a single cable for both power and connectivity – no need to wire back to the door controller. You’ll also benefit from remote maintenance possibilities over the network, with lower costs and higher security. For instance, you can update the firmware, change configurations, and manage your device—all from anywhere in the world. It's fully integrated with AXIS Camera Stations Secure Entry.



Viktiga egenskaper

Axis A4612. Supported network protocols: HTTP, HTTPS3, SMTP, TFTP DHCP opt. 66, Syslog. Power consumption (max): 12 W, DC voltage range: 12 V, Power consumption: 600 mA. Width: 50 mm, Depth: 27 mm, Height: 133 mm



Teknisk specifikation

Type	Entrance control terminal
Authentication type	Access chip/card,Mobile app
LED indicators	Yes
Buzzer	Yes
Authentication card type	Mifare Classic 1K
Access code reader	No
Exit button	Yes
Fingerprint reader	No
Access chip/card reader	Yes
RFID frequency	13.56 MHz
Languages support	Multi
Product colour	Black
Housing material	Plastic
International Protection (IP) code	IP55
Maximum cable length	2.9 m
Warranty period	5 year(s)
Certification	UL/cUL, CE, KC, VCCI, RCM, FCC, MIC, GITEKI(R), NCC

Built-in display	No

Front camera	No

Bluetooth	Yes
Bluetooth version	5.0
Supported network protocols	HTTP, HTTPS3, SMTP, TFTP DHCP opt. 66, Syslog

Power consumption (max)	12 W
DC voltage range	12 V
Power consumption	600 mA

Height	133 mm
Depth	27 mm
Width	50 mm
Weight	500 g

Storage relative humidity (H-H)	5 - 95 %
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 95 %
