Produktbeskrivning

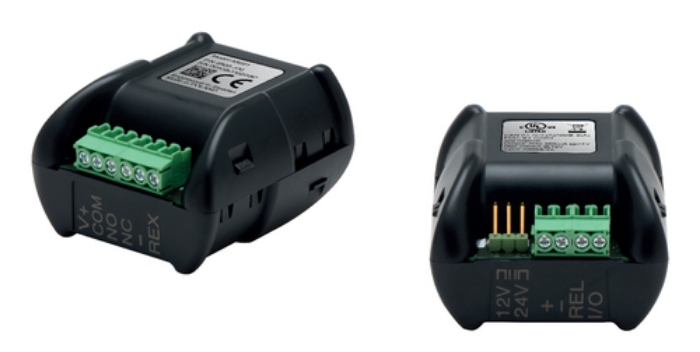

AXIS A9801 Security Relay improves security for doors controlled by Axis network video door stations. The small relay, easily placed in most standard installation boxes, is installed on the secure side of the door. If anyone attempts to dismount or vandalize the door station, AXIS A9801 cuts the connection to the door strike and the door remains securely locked. Normal function can be restored using the relay’s reset button. AXIS A9801 also acts as a power transformer and can double the 12 V output from a door station, thus enabling control of 24 V locks without any extra wiring or power supply



Viktiga egenskaper

Axis 5801-141. Placement supported: Indoor, Product colour: Black, Housing material: Plastic. Connectivity technology: Wired. Width: 48 mm, Depth: 45 mm, Height: 30 mm



Teknisk specifikation

Placement supported	Indoor
Product colour	Black
Housing material	Plastic
Certification	EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, C-tick AS/NZS CISPR 22 Class A, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, IEC/EN/UL 60950-1

Connectivity technology	Wired

Height	30 mm
Width	48 mm
Depth	45 mm
Weight	100 g

Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 100 %

Harmonized System (HS) code	85299020
