Produktbeskrivning

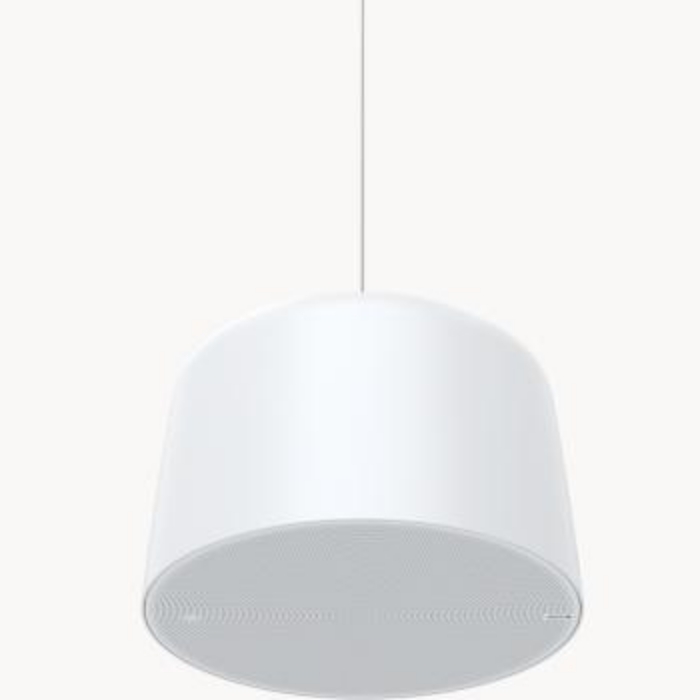

This all-in-one speaker system makes audio announcements smart and easy. For instance, it can be used to make general live or prerecorded voice messages, remotely and proactively warn off intruders, and deliver instructions. It offers easy integration with your video management software (VMS), VoIP telephony, analytics, and more. Including a preconfigured digital signal processer (DSP) it produces clear voice every time. It also features a built-in microphone enabling remote health testing. This visually attractive pendant speaker is ideal for mounting in high ceilings. Furthermore, the embedded audio management software supports user, content, zone, and scheduling management.



Viktiga egenskaper

Axis 02389-001. Recommended usage: Intercom system. Speaker type: 1-way. Connectivity technology: Wired. Frequency range: 60 - 20000 Hz. Product colour: White



Teknisk specifikation

Speaker type	1-way
Speaker placement	Ceiling-mountable
Mid-range driver diameter (imperial)	4 "

Frequency range	60 - 20000 Hz
Sound pressure level (max)	96 dB
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,MP3,PCM,WAV

Product colour	White
Recommended usage	Intercom system
Number of speakers	1
Housing material	Metal,Plastic
International Protection (IP) code	IP40
LED indicators	Yes

Amplifier class	D
Amplifier output power	7 W

Connectivity technology	Wired
Microphone in	Yes
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC

Power source type	PoE

Width	290 mm
Depth	290 mm
Height	180 mm
Weight	4100 g

Quantity per pack	1 pc(s)

Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	10 - 85 %

Ethernet LAN (RJ-45) ports	1
