Produktbeskrivning

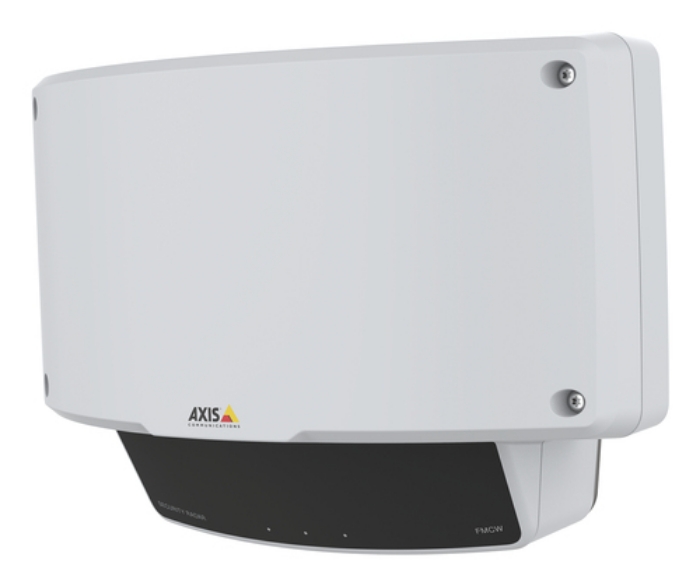

AXIS D2110-VE Security Radar is a smart network-based security device that uses advanced radar technology to deliver wide 180° coverage. Thanks to built-in analytics developed using machine learning and deep learning, it can accurately detect, classify and track people and vehicles with a low false alarm rate. Featuring PoE-out it’s easy to connect and power an additional device, such as a camera for visual verification or a network horn speaker for deterrence. Furthermore, smart coexistence functionality allows the use of multiple radars close to each other. For instance, it’s possible to mount two radars back-to-back for complete 360° coverage.



Viktiga egenskaper

Axis 01564-001. Product colour: White, Installation height (max): 3.5 m, Detection angle: 180°. Connectivity technology: Wired, Operating frequency: 2405 - 2425 MHz, Detection distance: 85 m. Power source type: DC, Input voltage: 8 - 28 V, Power consumption (typical): 10 W. Width: 285 mm, Depth: 206 mm, Height: 152 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Product colour	White
Detection angle	180 °
Installation height (max)	3.5 m
Certification	EN 300440, EN 301489-1, EN 301489-51, EN 62311, FCC 15 C, ANATEL, AS/NZS 4268, ICASA, IFETEL, MIC, MoC, NCC, RSS-210 EN 55032 A, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, FCC 15 B A, ICES-3(A)/NMB-3(A), KC KN32 A, RCM AS/

Connectivity technology	Wired
Operating frequency	2405 - 2425 MHz
Detection distance	85 m

Power source type	DC
Power consumption (typical)	10 W
Input voltage	8 - 28 V

Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Operating temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	10 - 100 %

Width	285 mm
Depth	206 mm
Height	152 mm
Weight	2400 g

Quantity per pack	1 pc(s)

Manual	Yes
