Produktbeskrivning

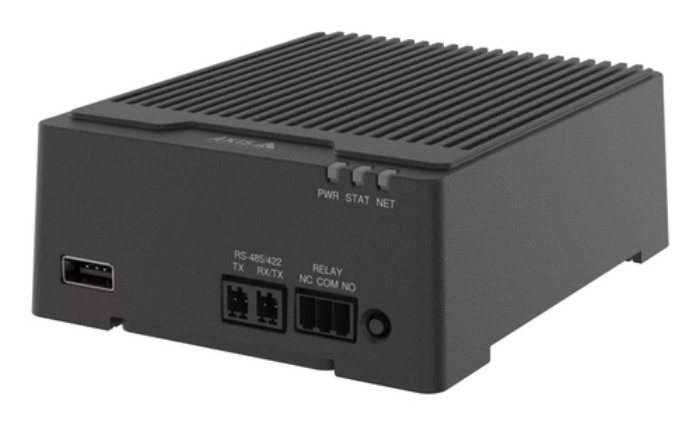

AXIS D3110 Mk II enables sensor and audio integration into network video systems that don’t have such capabilities or need additional ones. Ideal in an Axis end-to-end solution, it helps you increase scene awareness without compromising network security.

Broad sensor compatibility

With eight supervised configurable I/Os, an RS485/RS422 port, a relay, and two audio-in ports, AXIS D3110 Mk II allows you to integrate a broad range of non-visual sensors. For example, you can connect door switches, smoke detectors, temperature sensors, or glass break detectors to trigger alarms and events in your system. Or set a motion sensor to trigger a live audio stream. With the two audio-in ports and one audio-out port, you can add audio capability to your system.

Audio for awareness beyond video

AXIS D3110 Mk II is ideal where visual monitoring is not appropriate, or you need increased scene awareness with audio. It comes with high-quality audio thanks to voice enhancement for improved noise suppression and automatic gain control for lower microphone sensitivity. The 10-band equalizer makes it possible to filter out specific sound frequencies. Together with a microphone it can be used for two-way communication. Furthermore, AXIS Audio Analytics will notify you even when there's no visual indication.

Secure and flexible integration

Supporting VAPIX®, MQTT, and SIP, AXIS D3110 Mk II offers secure and seamless integration into an Axis end-to-end solution. What’s more, Axis Edge Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. It also offers secure key storage with FIPS 140-3 Level 3 certified secure cryptographic key storage and operations.



Viktiga egenskaper

Axis D3110 Mk II. Module type: Analog, Signal direction: Input/output, Channel type: Relay channel. DC input voltage: 10 - 28 V. Width: 99 mm, Depth: 118 mm, Height: 42 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Module type	Analog
Signal direction	Input/output
Channel type	Relay channel
Serial interface type	RS-422/485
Ethernet LAN (RJ-45) ports	1
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1, HTTP/ 2, TLS1, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC
LED indicators	Yes
International Protection (IP) code	IP30
Certification	CSA, UL/cUL, CE, KC, VCCI, RCM

DC input voltage	10 - 28 V

Storage temperature (T-T)	-40 - 70 °C
Relative humidity	10 - 85 %
Operating temperature (T-T)	-40 - 70 °C

Width	99 mm
Depth	118 mm
Height	42 mm
Weight	445 g

Quantity per pack	1 pc(s)
