Produktbeskrivning

Ideal for issuing warnings and delivering information, this all-in-one signaling device helps deter intruders, improve operational efficiency, and support health and safety applications. With customized messaging and strobe lights, it offers cost-efficient ownership.

One device: many ways to communicate

This multi-purpose audio-visual signaling device enables live and prerecorded audio and alarm sounds. It supports AXIS Audio Manager enabling zone management, and the possibility to schedule content and provide it where needed. Built-in health monitoring lets you know your system is working as expected. In addition, the strobe light offers a choice of nine colors (red, green, blue, amber, pink, turquoise, purple, yellow, and white) and various light patterns, which can be combined to meet specific needs.

Improve safety, security, and operational efficiency

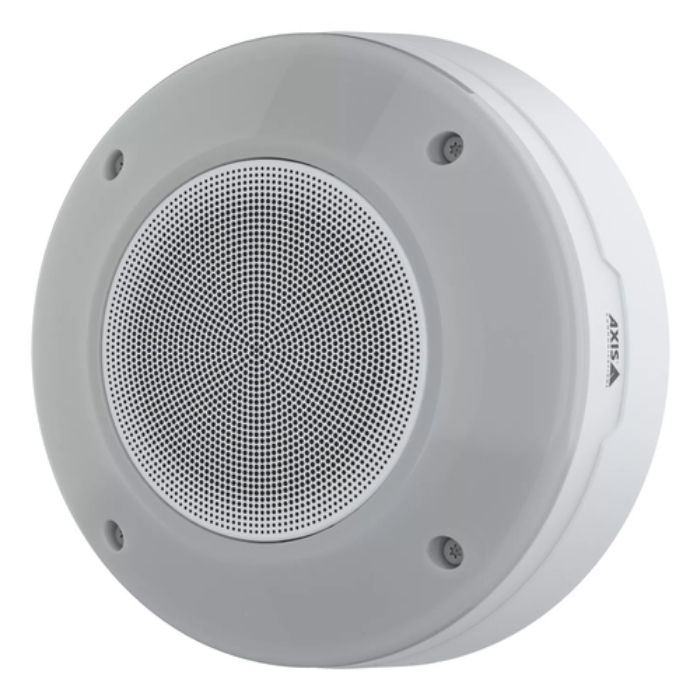

AXIS D4200-VE enables automatic responses with customized live and prerecorded audio, alarm sounds, strobe lights, or a combination of all of these. It can be triggered by other devices in your system such as cameras, radars, or 3rd party sensors, as well as video analytics. For instance, if a camera with analytics detects an intruder at your perimeter, you can make a prerecorded announcement and activate the strobe light to deter them. And AXIS Audio Analytics can trigger an alert whenever it detects sudden increases in sound levels. This multi-purpose device also helps improve operational efficiency, allowing you to manage the flow of people and vehicles on your premises.

Cost-efficient ownership

Supporting a wide temperature range, this robust, IP66-, NEMA-4X- and IK09-rated device is ideal both indoors and outdoors. And an optional sunshield is available for outdoor use. It’s cost-efficient to install, configure, and maintain. Plus, with everything in one device, you spend less time on installation, and there’s fewer cables and other mounting accessories needed. Through VAPIX, SIP, MQTT, or I/Os, there’s numerous integration possibilities. Scheduled health checks mean lower costs for on-site inspection, and you’ll immediately be notified if something is wrong. Furthermore, it can forward power to connected PoE class 4 devices.



Viktiga egenskaper

Axis D4200-VE. Speaker type: 2-way, Speaker placement: Pole, Wall-mountable, Illumination colour: Multi. Frequency range: 365 - 14000 Hz, Sound pressure level (max): 102 dB, Dispersion pattern: 140°. Product colour: White, International Protection (IP) code: IP66. Connectivity technology: Wired. Power source type: PoE



Teknisk specifikation

Speaker type	2-way
Built-in amplifier	Yes
Speaker placement	Pole,Wall-mountable
Number of speakers	1
Illumination colour	Multi
Illumination LED	Yes
Built-in microphone	Yes
Two-way talk	Yes
Audio formats supported	AAC-LC,ADPCM,G.711,G.726,MP3,WAV
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	10 - 100 %

Frequency range	365 - 14000 Hz
Sound pressure level (max)	102 dB
Audio processing technologies	Acoustic echo cancellation (AEC)
Dispersion pattern	140 °
Audio sampling rate (microphone)	48 kHz

Product colour	White
Suitable for outdoor use	Yes
International Protection (IP) code	IP66

Connectivity technology	Wired

Power source type	PoE

Weight	1500 g

Quantity per pack	1 pc(s)

Languages support	Multi

Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1, HTTP/ 2, TLS1, QoS Layer 3 DiffServ, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/ DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP,
