Produktbeskrivning

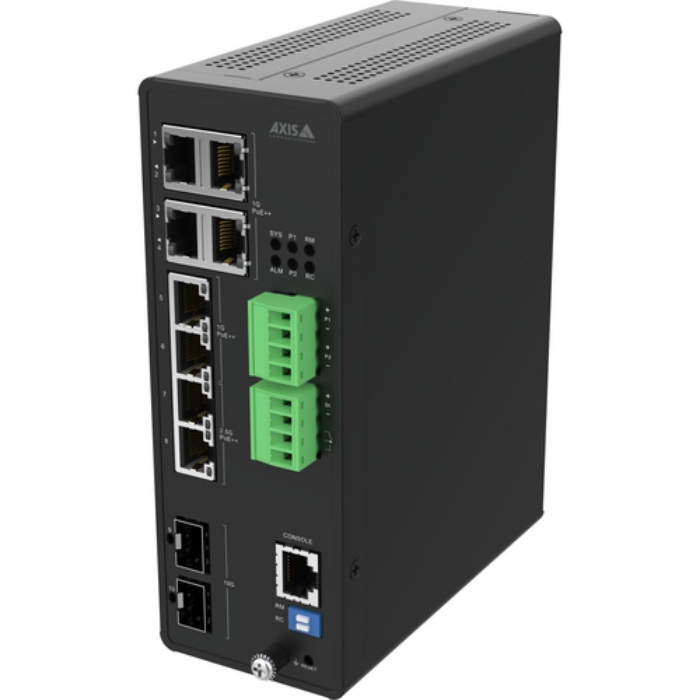

This rugged 8-port switch is ideal for demanding installations. Designed to withstand shock and vibrations, it can handle temperatures ranging from -40 °C to 60 °C (-40 °F to 140 °F). Each port can deliver up to 90 W PoE++ (IEEE 802.3bt) with a total power budget of 480 W. Plus, it also supports fiber ensuring flexible long-distance installations. Furthermore, featuring a familiar Axis interface with a graphic topology for easy overview of devices, AXIS D8208-R ensures easy configuration with Axis products.



Viktiga egenskaper

Axis 02621-001. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 2, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 62 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE)



Teknisk specifikation

Switch type	Managed
ARP inspection	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Gigabit Ethernet (copper) ports quantity	6
2.5G Ethernet (copper) ports quantity	2
Installed SFP+ modules quantity	2
Console port	RJ-45

Networking standards	IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
10G support	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN

MAC address table	16000 entries
Switching capacity	62 Gbit/s
Throughput	46.12 Mpps
Jumbo frames support	Yes
Jumbo frames	10240

DHCP features	DHCP snooping
Access Control List (ACL)	Yes
Security algorithms	HTTPS
Password protection	Yes

Supported network protocols	IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP

Product colour	Black
Housing material	Aluminium
Certification	EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, IEC 62236-4, FCC part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, VCCI Class A, RCM AS/NZS CISPR 32 Class A Safety IEC/EN/UL 62368-1 e

Power source	DC/PoE

Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	8
Power over Ethernet (PoE) power per port	90 W
Total Power over Ethernet (PoE) budget	480 W

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95 %
Storage relative humidity (H-H)	5 - 95 %

Width	62 mm
Depth	130 mm
Height	168 mm
Weight	892 g
