Produktbeskrivning

Scalable and flexible

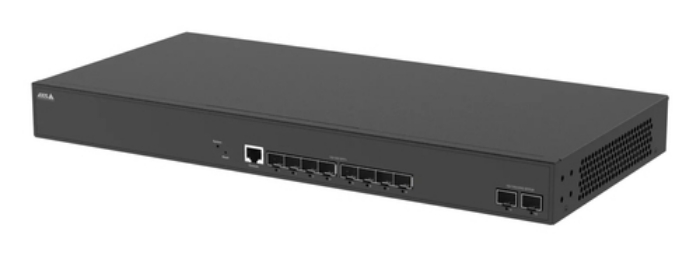

With AXIS D8308 Fiber Aggregation Switch you can connect multiple Axis devices using fiber midspans over long distances. It also enables easy expansion by simply adding more fiber or network switches.

For long distance installations

Long-distance installations often require fiber optic cables to connect different sites because of fiber's ability to transmit data over much greater distances with minimal signal loss. AXIS D8308 support fiber optic connections, making it ideal for linking remote locations within a network.

Easy to install and configure

AXIS D8308 Fiber Aggregation Switch is easy to install using standard Axis tools as AXIS IP Utility and AXIS Device Manager. It comes with an individual password, easy to use setup wizard, and a comprehensive set of configuration tools. For instance, an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Port Security, and Spanning tree to further optimize the total solution.



Viktiga egenskaper

Axis D8308. Switch layer: L2/L3. Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 260 Gbit/s. Networking standards: IEEE 802.1x. Rack mounting



Teknisk specifikation

Switch layer	L2/L3
Quality of Service (QoS) support	Yes
ARP inspection	Yes

Basic switching RJ-45 Ethernet ports type	No
Fiber ports quantity	10
Fiber optic connector	SFP+,SFP28
Console port	RJ-45
SFP28 ports quantity	2

Networking standards	IEEE 802.1x
Broadcast storm control	Yes
VLAN support	Yes

Fiber ethernet cabling technology	10GBASE-LR,10GBASE-SR,25GBASE-LR,25GBASE-SR

MAC address table	32000 entries
Switching capacity	260 Gbit/s
Throughput	193.44 Mpps
Static route	Yes

Access Control List (ACL)	Yes
Password protection	Yes
Loop protection	Yes
Security algorithms	HTTPS,TLS

Supported network protocols	IPv4, IPv6, HTTP, HTTPS, QoS Layer 3 DiffServ, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RIP v1/v2,
Routing protocols	OSPF,RIP
IP Source Guard (IPSG)	Yes

Rack mounting	Yes
Stackable	Yes
Product colour	Black
Housing material	Steel
Certification	CSA, UL/cUL, CE, VCCI, RCM, ICES, FCC, TAA, CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Part 15 Subpart B Class A, C

Compliance certificates	REACH,RoHS

Power source	AC
AC input voltage	100 - 250 V
AC input frequency	50/60 Hz
Power protection features	Surge protection

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	5 - 95 %

Width	442 mm
Depth	211.1 mm
Height	44 mm
Weight	2580 g

Cables included	AC
Manual	Yes

Doesn't contain	BFR,CFR,PVC
