Produktbeskrivning

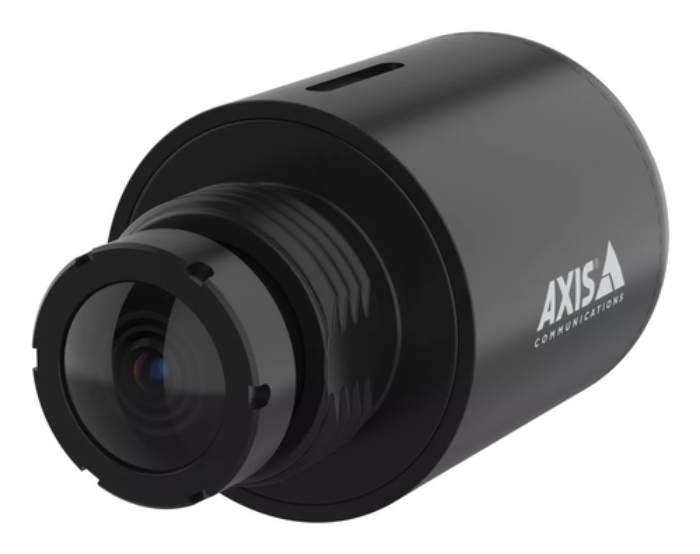

AXIS F2107-RE Standard Sensor

Ideal for both indoor and outdoor installation, this sensor unit offers high-quality 5 MP video, 110° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection.

High image quality

This standard sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 110° horizontal field of view, it’s perfect when you need wide -area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.

Flexible and discreet

With a small cylinder-shaped form factor, AXIS F2107-RE offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it’s ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It’s compatible with the same accessories as other AXIS F21 sensors to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed.

Ruggedized standard sensor

This IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this standard sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure a ruggedized installation.



Viktiga egenskaper

Axis F2107-RE. Type: Sensor unit, Placement supported: Universal, Brand compatibility: Axis. Lens mount interface: M12, Sensor type: CMOS, Focal length range: 2.8 mm. Power consumption (typical): 1 W, Power consumption (max): 1.8 W. Width: 30 mm, Depth: 58 mm, Height: 30 mm. Quantity per pack: 8 pc(s)



Teknisk specifikation

Type	Sensor unit
Placement supported	Universal
Brand compatibility	Axis
Product colour	Black
Housing material	Aluminium
International Protection (IP) code	IP66, IP67, IP6K9K
Wide Dynamic Range (WDR)	Yes
Certification	CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Japan: VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62368-1 ed. 3, IEC/EN 60950-22, UN ECE R118, CISPR

Lens mount interface	M12
Sensor type	CMOS
Focal length range	2.8 mm
F-number (relative aperture)	2
Resolution	2592 x 1944 pixels
Viewing angle, horizontal	110 °
Viewing angle, vertical	80 °

Number of connectors	1

Power consumption (typical)	1 W
Power consumption (max)	1.8 W

Height	30 mm
Depth	58 mm
Width	30 mm
Weight	54 g

Quantity per pack	8 pc(s)

Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %

Doesn't contain	BFR,CFR,PVC
