Produktbeskrivning

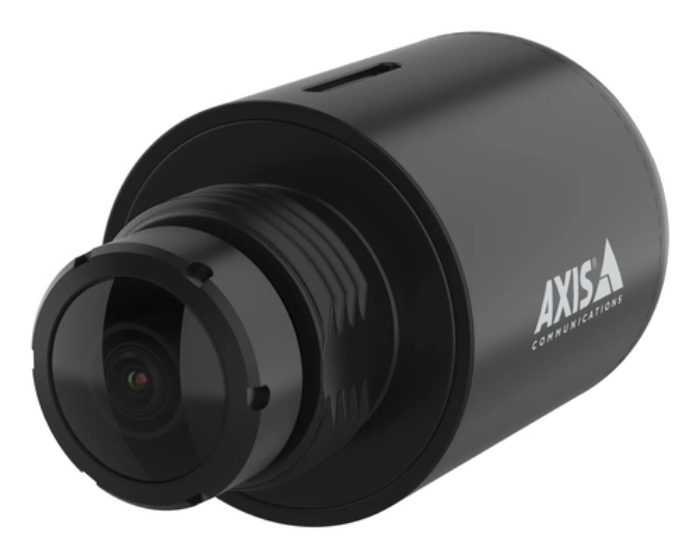

5 MP discreet fisheye sensor

Ideal for both indoor and outdoor installations, this sensor unit offers high-quality 5 MP video, excellent 185° field of view, and good performance in low-light conditions. Rugged SMA connectors ensure a tight connection.

High image quality
This fisheye sensor delivers high-quality 5 MP video even in challenging and low-light conditions. With a 185° horizontal field of view, it’s perfect when you need wide-area coverage with great details in both indoor and outdoor environments. When used with AXIS F91 main units, it supports Forensic WDR to ensure clarity when there’s both dark and light areas in the scene. Plus, Lightfinder captures sharp, color images in low light.

Flexible and discreet
This sensor unit delivers 5 MP and a 185° horizontal field of panoramic view. With a small cylinder-shaped form factor, it offers discreet installation. Based on a divided network camera concept, it can be placed away from the main unit. And thanks to its small size, it’s ideal for installation in tight spaces, for instance, in ATMs and industrial machines. Designed to work with AXIS F91 main units, it can be combined with up to three other sensor units for maximum flexibility. It’s compatible with the same accessories as other AXIS F2135-RE Sensor to simplify procurement, installation, and upgrade. Furthermore, when maintenance or upgrade is needed, the cable can be left in place. So, you can quickly remove the sensor unit and update or replace it as needed.

Ruggedized fisheye sensor
This IP66-/IP67-/IP6K9K-rated device can withstand temperatures as low as -40 °C and as high as 60°C (-40 °F to 140 °F). And, thanks to its rugged design, this fisheye sensor unit can withstand shock and vibration making it ideal for installation, for instance, in vehicles and industrial machines. It features SMA connectors to ensure a tight connection between the sensor and the cable. Plus, the cable itself features a SMA-FAKRA connector to further ensure ruggedized installation.



Viktiga egenskaper

Axis F2137-RE. Type: Camera module, Placement supported: Universal, Brand compatibility: Axis. Lens mount interface: M12, Image sensor size: 1/2.78", Sensor type: CMOS. Power consumption (typical): 1 W, Power consumption (max): 1.9 W. Width: 30 mm, Depth: 58 mm, Height: 30 mm. Quantity per pack: 8 pc(s)



Teknisk specifikation

Type	Camera module
Placement supported	Universal
Brand compatibility	Axis
Compatibility	F9104-B Mk II, F9111-R Mk II, F9114-B Mk II, F9114-R Mk II
Product colour	Black
Housing material	Aluminium
International Protection (IP) code	IP66, IP67, IP6K9K
Wide Dynamic Range (WDR)	Yes

Lens mount interface	M12
Image sensor size	1/2.78 "
Sensor type	CMOS
Focal length range	1.98 mm
F-number (relative aperture)	2
Resolution	2592 x 1944 pixels
Viewing angle, horizontal	185 °
Viewing angle, vertical	125 °

Number of connectors	1

Power consumption (typical)	1 W
Power consumption (max)	1.9 W

Height	30 mm
Depth	58 mm
Width	30 mm
Weight	54 g

Quantity per pack	8 pc(s)

Operating temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	5 - 95 %

Doesn't contain	BFR,CFR,PVC
