Produktbeskrivning

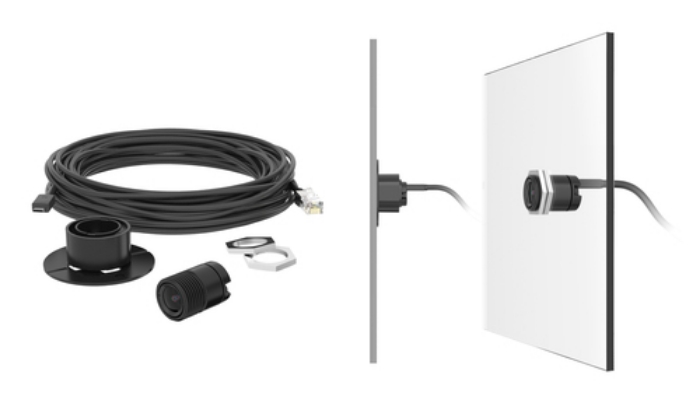

AXIS FA1105 is ideal for highly discreet indoor surveillance applications in stores and banks, and when integrated in machines. It can be installed in tight places and flush-mounted in a wall, ceiling or metal panel with only a small hole visible for the lens. For use with an AXIS FA Main Unit, AXIS FA1105 provides a 1080p resolution and a wide 111º horizontal field of view. AXIS FA1105 uses Forensic WDR (wide dynamic range) that is tuned for motion. The unit comes with a mounting bracket and an 8-m (26 ft.) cable for connection to a main unit.



Viktiga egenskaper

Axis 0913-001. Type: Sensor unit, Placement supported: Indoor, Product colour: Black. Image sensor size: 1/3", Sensor type: CMOS, Resolution: 1920 x 1080 pixels. Diameter: 2 cm, Width: 29 mm, Weight: 16 g



Teknisk specifikation

Type	Sensor unit
Placement supported	Indoor
Product colour	Black
Housing material	Aluminium,Plastic

Image sensor size	1/3 "
Sensor type	CMOS
F-number (relative aperture)	2
Resolution	1920 x 1080 pixels
Viewing angle, horizontal	111 °
Viewing angle, vertical	61 °

Diameter	20 mm
Width	29 mm
Weight	16 g

Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 85 %
Storage temperature (T-T)	-40 - 65 °C

Harmonized System (HS) code	85299020
