Produktbeskrivning

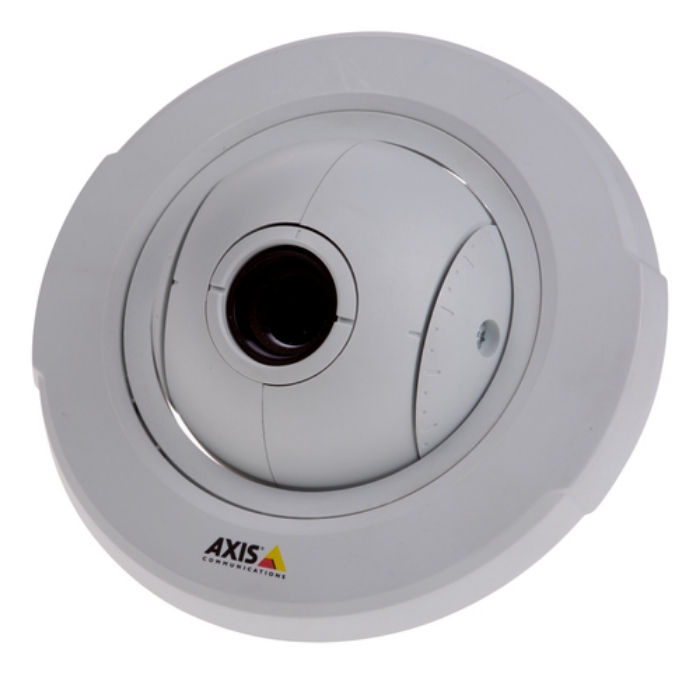

AXIS FA4090-E Thermal Sensor Unit is a dome-shaped outdoor-ready thermal sensor unit. The flexible and highly discreet design allows for versatile installation: behind surfaces for discreet surveillance, on walls, or recessed. AXIS FA4090-E can be used as a surveillance sensor that doesn’t compromise personal integrity. For use with AXIS FA54 Main Unit, it supports AXIS Camera Application Platform, which enables the use of analytics such as AXIS Guard Suite. It provides reliable solution for detection with a low rate of false alarms.



Viktiga egenskaper

Axis 01729-001. Type: Sensor unit, Placement supported: Universal, Brand compatibility: Axis. Focal length range: 4 - 4 mm, Resolution: 208 x 156 pixels, Viewing angle, horizontal: 35.4°. Connectivity technology: Wired. Cable length: 12 m, Diameter: 3 cm, Weight: 370 g



Teknisk specifikation

Type	Sensor unit
Placement supported	Universal
Brand compatibility	Axis
Compatibility	FA54
Product colour	White
Housing material	Aluminium
International Protection (IP) code	IP66
Certification	55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, ICES-003 Class A, IEC/EN/UL 62368-1, IEC 60068-2-1, IEC 60068-2-2, IEC 60068–2–6, IEC 60068-2-14, IE

Focal length range	4 - 4 mm
F-number (relative aperture)	1.2
Resolution	208 x 156 pixels
Viewing angle, horizontal	35.4 °
Viewing angle, vertical	28 °

Number of connectors	1

Connectivity technology	Wired

Cable length	12 m
Diameter	30 mm
Weight	370 g

Mounting kit	Yes

Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 100 %
Storage temperature (T-T)	-40 - 65 °C

Harmonized System (HS) code	85299020
