Produktbeskrivning

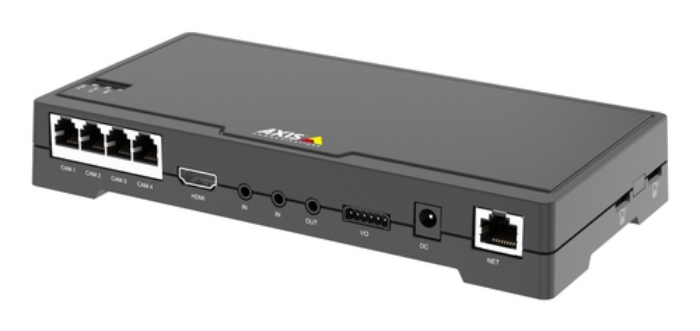

AXIS FA54 supports up to four AXIS FA Sensor Units, enabling cost-effective and highly discreet surveillance of four closely situated areas with one system. The main unit can stream full frame rate HDTV 1080p videos from four sensor units simultaneously using one IP address. Ideal for retail applications, AXIS FA54 also supports quad view streaming and has an HDMITM port for connection to a surveillance or public view monitor. The unit uses Forensic WDR (wide dynamic range) that is tuned for motion. Axis Zipstream video compression technology reduces bandwidth and storage requirements.



Viktiga egenskaper

Axis FA54. Channels quantity: 4 channels, Maximum video resolution: 1920 x 1080 pixels, Maximum frame rate: 30 fps. Product colour: Black, Certification: 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, VCCI A, RCM.... Ethernet LAN data rates: 10,100,1000 Mbit/s, Supported network protocols: IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP,.... AC adapter input voltage: 12 V, Power consumption (min): 14 W, Power consumption (max): 30 W. Width: 202 mm, Depth: 102 mm, Height: 31 mm



Teknisk specifikation

Channels quantity	4 channels
Alarm input channels	4
Alarm output channels	4
Maximum video resolution	1920 x 1080 pixels
Maximum frame rate	30 fps
Resolution at capture speed	640x480@60fps,1280x720@50fps,1920x1080@24fps,1920x1080@25fps,1920x1080@30fps
Supported graphics resolutions	480 x 270,1920 x 1080 (HD 1080)
Supported video modes	480p,576p,720p,1080p
Internal memory	1024 MB
Video formats supported	H.264,M-JPEG
Audio formats supported	AAC,ADPCM,G.711,G.726,OPUS
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS

Product colour	Black
Certification	55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, VCCI A, RCM AS/NZS CISPR 32 A, ICES-003 A, IEC/EN/UL 62368-1, EN 50581, IEC 60529 IP3X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-78, IEC 60068-2-6, IEC

Ethernet LAN data rates	10,100,1000 Mbit/s
Supported network protocols	IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH

Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

AC adapter input voltage	12 V
Power consumption (min)	14 W
Power consumption (max)	30 W

Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 85 %
Storage temperature (T-T)	-40 - 65 °C

Width	202 mm
Depth	102 mm
Height	31 mm
Weight	442 g

AC adapter included	Yes
Manual	Yes
