Produktbeskrivning

This sleek IP phone allows receptionists and concierges to efficiently respond to calls from IP intercoms. It combines visual verification with clear, two-way communication so you can both see and hear who’s at the door.

Extra security at the door

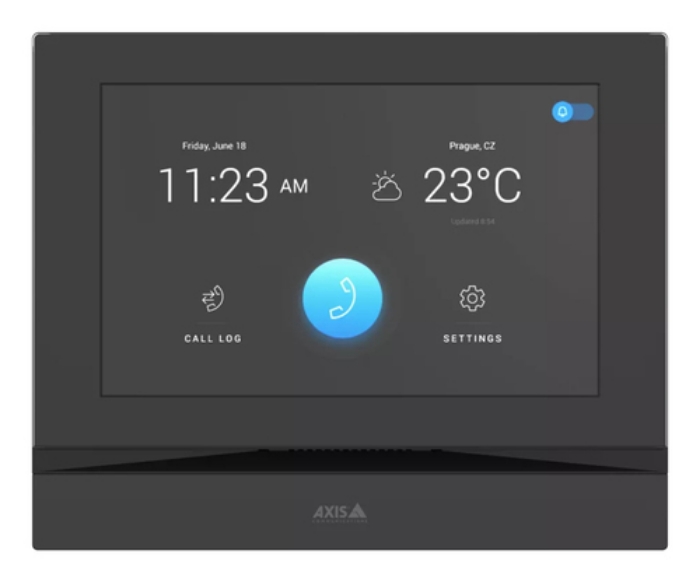

Designed to work with Axis, 2N, and third-party intercoms, AXIS I5304 Answering Unit lets you hear and see your visitors, adding extra security at the door. It features a 7” touch screen to display high-quality video for reliable visual verification. Plus, two-way communication allows you to hear the conversation clearly.

Easy to use

Ideal for office and commercial use, AXIS I5304 Answering Unit makes life easier for receptionists and concierges. They can quickly and efficiently respond to calls from IP intercoms at the door. And with fast touch response, they can quickly open the door by simply touching a button on the display. This IP phone also displays a preview of the intercom’s camera. Furthermore, with a modern, sleek design, it’s available in both black and white.

Quick and flexible installation

AXIS I5304 ensures secure installation. With support for PoE, it requires just one cable for both power and connectivity so you can connect it directly to your network. And you can place it wherever you want—on a reception desk or mounted on walls or recessed mounted using accessories.



Viktiga egenskaper

Axis I5304. Display diagonal: 17.8 cm (7"), Display technology: LCD, Display resolution: 1024 x 600 pixels. Voice codecs: G.711, G.722, G.729. Product colour: Black, Housing material: Plastic. Ethernet interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Indoor unit power type: DC/PoE, Power consumption (typical): 2.9 W, Power consumption (standby): 12 W



Teknisk specifikation

Connectivity technology	Wired
Colour	Yes
Speakerphone	Yes
Echo cancellation	Yes
Streaming capability	Yes
Wall mountable	Yes
Built-in microphone	Yes
Warranty period	5 year(s)
Certification	CSA, UL/cUL, CE, VCCI, RCM

Display diagonal	7 "
Display technology	LCD
Display resolution	1024 x 600 pixels
Touchscreen	Yes
Touchscreen type	Capacitive
Video formats supported	H.264,MPEG4

Built-in speaker(s)	Yes
Voice codecs	G.711,G.722,G.729

Product colour	Black
Housing material	Plastic

Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100Base-T(X)
Power over Ethernet (PoE)	Yes
Supported network protocols	IPv4, HTTP, HTTPS1, SIP 2.0, SIPS, SSL/TLS1, RTP, SRTP, RTSP, DHCP, NTP, TCP, IGMP, UDP, DNS, Syslog, FTP, SMTP, RTCP, ICMP, DHCPv4
Security algorithms	EAP-TLS,HTTPS,MSCHAPv2,PEAP,TLS

Indoor unit power type	DC/PoE
Power consumption (typical)	2.9 W
Power consumption (standby)	12 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	10 - 90 %

Width	193 mm
Height	157 mm
Weight	555 g

Indoor unit included	Yes
Outdoor unit included	No

Quantity per pack	1 pc(s)
