Produktbeskrivning

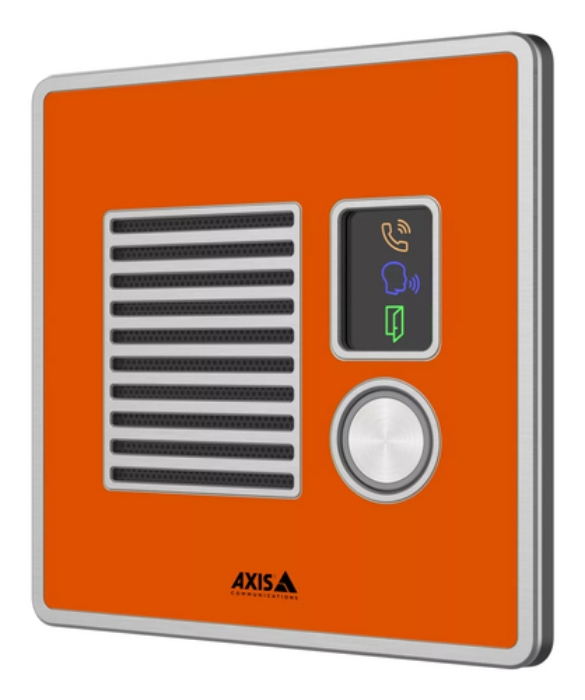

This robust, orange-colored intercom is clearly visible even in the most demanding environments. Echo cancellation and noise reduction ensure crystal-clear audio every time. And it offers easy integration with other systems.

For a safer environment

With 92dB sound pressure level (SPL), this safety network intercom delivers great audio quality allowing operators to clearly hear and communicate. It’s ideal in the most demanding situations and features echo cancellation and noise reduction to ensure voices are audible regardless of background noise. In addition, secure remote access lets you access your system from anywhere. This orange-colored device is clearly visible even in pitch darkness, snow, fog, and smokey environments. Plus, the RGB call button is illuminated for ease of use regardless of conditions. It’s also easy to install and use anywhere. For instance, it can be installed as a help-point in a public park allowing people to quickly call for assistance. And, thanks to its bright orange color, it also acts as a deterrent.

Protection from the inside out

This robust IP66/IP69-rated device includes a vandal-resistant IK10-rated front plate and offers flexible installation in both indoor and outdoor applications. What’s more, Axis Edge Vault safeguards the device and protects sensitive information from unauthorized access and offers FIPS 140 certified, secure crypto-graphic key storage and operations.

Flexible and easy to install

With edge-to-edge technology, it’s possible to add, for instance, an Axis camera to your installation for visual verification and enhanced situational awareness. This intercom is based on an open platform for seamless integration with Axis and third-party VMS systems. It also supports Session Initiation Protocol (SIP) for IP phone system integration, as well as open programming interfaces for software integration including VAPIX and ONVIF. It can be mounted on walls, recessed, or using a conduit mount. And with support for PoE, it uses just one network cable. It also fits into 2-gang installation boxes and benefits from no visible screws—the casing simply snaps on. Furthermore, an induction loop is available as an accessory making it possible to transmit audio to a person’s hearing aid.



Viktiga egenskaper

Axis I7010-VE. Connectivity technology: Wired, Noise level: 92 dB, Certification: CSA, UL/cUL, CE, KC, VCCI, RCM. Product colour: Orange, Housing material: Stainless steel, Placement: Wall. Power: 12.7 W. Width: 123.9 mm, Depth: 44.2 mm, Height: 123.9 mm. Quantity per pack: 1 pc(s)



Teknisk specifikation

Connectivity technology	Wired
Noise level	92 dB
Number of speakers	1
Power over Ethernet (PoE)	Yes
Speakerphone	Yes
Connector type	RJ-45
Buttons quantity	1
Certification	CSA, UL/cUL, CE, KC, VCCI, RCM
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS1, HTTP/ 2, TLS1, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC
Networking standards	IEEE 802.3af,IEEE 802.3at
International Protection (IP) code	IP66, IP69

Housing material	Stainless steel
Product colour	Orange
Placement	Wall

Power	12.7 W

Width	123.9 mm
Depth	44.2 mm
Height	123.9 mm
Weight	890 g

Outdoor unit included	Yes

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Quantity per pack	1 pc(s)
