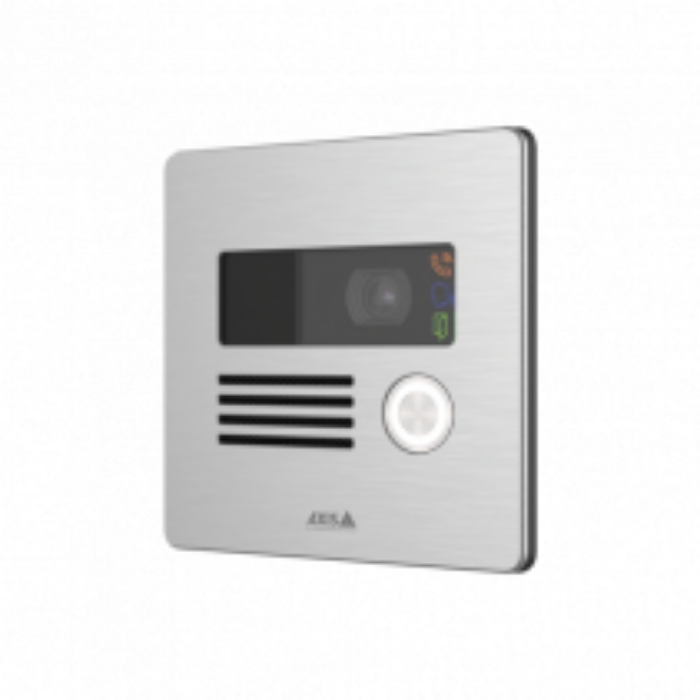

AXIS I8016-LVE Network Video Intercom is a compact and highly robust network intercom designed for two-way communication, video identification, and remote entry control. It offers 5 MP resolution with invisible IR night vision, and exceptional audio volume with echo and noise cancellation to ensure reliable 24/7 identification even in the most demanding situations. Based on open IP standards and interfaces, this network intercom offers great integration possibilities and is a perfect complement to any video surveillance system. Furthermore, it features multiple inputs and outputs for remote control of door locks and other equipment.
Viktiga egenskaper
Axis 01995-001. Megapixel (approx.): 5 MP, Maximum video resolution: 2592 x 1944 pixels, Sensor type: CMOS. LED type: IR. Voice codecs: G.722, G.726-32, OPUS, PCM, PCMA. Product colour: Black, On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese,..., International Protection (IP) code: IP66, IP69. Supported network protocols: IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB,..., Networking standards: IEEE 802.3af, IEEE 802.3at
Teknisk specifikation
Technical details
| Connectivity technology | Wired |
|---|
| Colour | Yes |
|---|
| Speakerphone | Yes |
|---|
| Maximum number of cameras supported | 1 |
|---|
| Maximum indoor range | 5 m |
|---|
| Contrast adjustment | Yes |
|---|
| Motion detection function | Yes |
|---|
| Built-in microphone | Yes |
|---|
| Wall mountable | Yes |
|---|
| Echo cancellation | Yes |
|---|
| Streaming capability | Yes |
|---|
| Door station control | Yes |
|---|
| Automatic gain control | Yes |
|---|
| VoIP protocols | secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN), Contact list, parallel call forking, sequential call forking |
|---|
| Relay inputs | 1 |
|---|
Camera
| Megapixel (approx.) | 5 MP |
|---|
| Maximum video resolution | 2592 x 1944 pixels |
|---|
| Sensor type | CMOS |
|---|
| PTZ control | Yes |
|---|
| Viewing angle, vertical | 114 ° |
|---|
| Maximum frame rate | 30 fps |
|---|
| Viewing angle, horizontal | 140 ° |
|---|
Night vision
| Night vision | Yes |
|---|
| LED type | IR |
|---|
Audio
| Built-in speaker(s) | Yes |
|---|
| Number of speakers | 1 |
|---|
| Noise-canceling | Yes |
|---|
| Voice codecs | G.722,G.726-32,OPUS,PCM,PCMA |
|---|
Design
| Product colour | Black |
|---|
| On Screen Display (OSD) languages | CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS |
|---|
| International Protection (IP) code | IP66, IP69 |
|---|
| Vandal-proof | Yes |
|---|
| IK code | IK10 |
|---|
| Number of OSD languages | 12 |
|---|
| Control type | Wireless |
|---|
| Proper use | Outdoor |
|---|
| Housing material | Plastic,Stainless steel,Zinc |
|---|
Network
| Power over Ethernet (PoE) | Yes |
|---|
| Networking standards | IEEE 802.3af,IEEE 802.3at |
|---|
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, NTCIP, SIP, LLDP, Sys |
|---|
Management features
| Syslog | Yes |
|---|
Power
| Operating voltage (door opener) | 30 V |
|---|
| Operating current (door opener) | 0.7 A |
|---|
| Power consumption (typical) | 4.7 W |
|---|
Operational conditions
| Operating relative humidity (H-H) | 10 - 100 % |
|---|
| Operating temperature (T-T) | -40 - 60 °C |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
|---|
Weight & dimensions
| Width | 124 mm |
|---|
| Height | 124 mm |
|---|
| Weight | 900 g |
|---|
Logistics data
| Harmonized System (HS) code | 85176920 |
|---|
