Produktbeskrivning

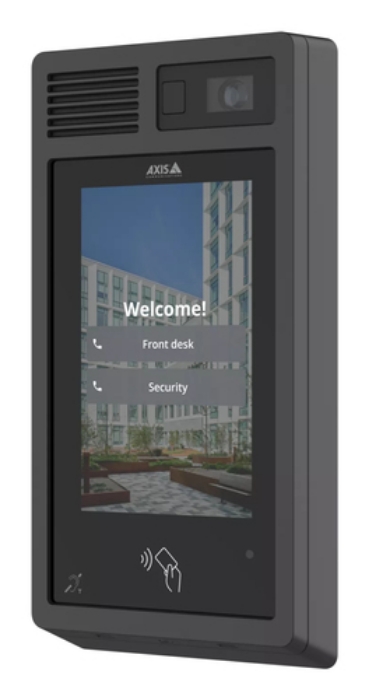

Ideal for a wide range of applications, this robust, vandal-resistant intercom combines outstanding 4K video, two-way audio, and a customizable touch display. It can easily be integrated with your VMS and other access control systems.

Intuitive, interactive screen

AXIS I8307-VE offers high-quality two-way video for enhanced communication. A fully featured 8 MP camera delivers outstanding details even outside the common two-way communication use case. You can rely on high-quality video surveillance and it’s possible to visually verify your visitors. With 85dB sound pressure level (SPL), echo cancellation, and noise reduction, this intercom is ideal in the most demanding situations. It features a 7” customizable touch screen, so you can display information to help visitors find where they’re going. For instance, you can show building maps or other relevant content. What’s more, you can tailor the screen’s background and customize the buttons.

Versatile and highly secure

This robust and vandal-resistant IP66/IK08-rated device offers flexible installation in both indoor and outdoor applications. Plus, it can be repainted to blend into specific environments. There’s a wide range of accessories available, so it can be easily mounted on walls, poles, recessed, or using a conduit mount. And with support for PoE, it uses just one network cable. It can also be easily configured to meet specific needs. For instance, the display’s background can be changed, and you can even add a welcome message. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.

Unmatched possibilities

This smart network intercom offers seamless integration with Axis and leading third-party VMS systems. It also supports Session Initiation Protocol (SIP) for IP phone system integration and VAPIX and ONVIF for deep VMS software integration allowing you to use your intercom as your primary surveillance camera. And the video can be live streamed in any VMS. A free downloadable mobile app lets you communicate and grant access from anywhere. Additionally, the integrated access control reader (RFID) with keypad functionality makes it easy to integrate with other access control systems so you can easily expand and enhance your system as your needs change.



Viktiga egenskaper

Axis I8307-VE. Display diagonal: 17.8 cm (7"), Display resolution: 800 x 480 pixels, Touchscreen type: Capacitive. Maximum video resolution: 3840 x 2160 pixels, Image quality adjustment: Brightness, Contrast, Mirror, Saturation, Sharpness, White balance, Sensor type: CMOS. Voice codecs: G.711, G.726, PCM. Product colour: Black, On Screen Display (OSD) languages: Multi, International Protection (IP) code: IP66. Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC



Teknisk specifikation

Connectivity technology	Wired
Colour	Yes
Speakerphone	Yes
Number of displays supported	1
Maximum number of cameras supported	1
RFID reader	Yes
Wall mountable	Yes
Streaming capability	Yes
Echo cancellation	Yes
Built-in microphone	Yes

Display diagonal	7 "
Display resolution	800 x 480 pixels
Touchscreen	Yes
Wide Dynamic Range (WDR)	Yes
Video formats supported	H.264,H.265,MPEG4
Touchscreen type	Capacitive

Maximum video resolution	3840 x 2160 pixels
Image quality adjustment	Brightness,Contrast,Mirror,Saturation,Sharpness,White balance
Sensor type	CMOS
Optical sensor size	1/1.8 "
Fixed focal length	2.2 mm
Motion sensor	Yes
PTZ control	Yes
Minimum illumination	0.04 lx
Maximum frame rate	60 fps
Maximum aperture number	1.8
Viewing angle, vertical	112 °
Viewing angle, horizontal	150 °
Motion sensor technology	Passive infrared (PIR) sensor

Built-in speaker(s)	Yes
Voice codecs	G.711,G.726,PCM

Product colour	Black
On Screen Display (OSD) languages	Multi
Vandal-proof	Yes
IK code	IK08
International Protection (IP) code	IP66
Control type	Touch
Placement supported	Vertical
Housing material	Aluminium

Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC

Internal memory (transmitter)	4000 MB
Flash memory (transmitter)	8 MB
Alarm input channels (transmitter)	4

Ethernet interface type	Fast Ethernet
Ethernet LAN data rates	10,100 Mbit/s
Cabling technology	10/100Base-T(X)
Power over Ethernet (PoE)	Yes
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2, HTTP/ 2, TLS2, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB- II), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHC

Outdoor unit power type	DC/PoE
Power consumption (typical)	7 W
Power consumption (max)	25 W

Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	5 - 95 %

Width	144 mm
Depth	44 mm
Height	290 mm
Weight	2069 g

Outdoor unit included	Yes

Quantity per pack	1 pc(s)

Screws included	Yes
Quick start guide	Yes
