Produktbeskrivning

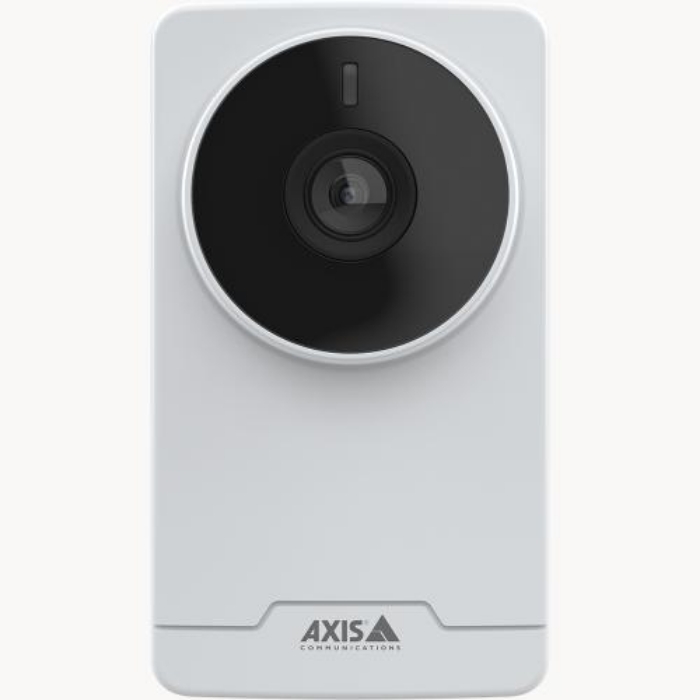

Offering an IR-corrected lens, this compact, easy-to-install camera delivers professional-quality video both day-and-night. It features a tally LED to indicate video streaming or recording. And AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. A deep learning processing unit enables advanced features and powerful analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network



Viktiga egenskaper

Axis 02349-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 3.16 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS
Number of languages	12
Certification	EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Form factor	Box
Mounting type	Ceiling/wall
Product colour	White
LED indicators	Yes
Housing material	Aluminium,Plastic

Minimum illumination	0.03 lx
Lens viewing angle, horizontal	103 °
Lens viewing angle, vertical	55 °
Camera shutter speed	1/19000 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.9 "

Number of lenses	1
Fixed focal length	3.16 mm

Night vision	Yes

Maximum resolution	1920 x 1080 pixels
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG
Supported graphics resolutions	320 x 240,640 x 360,1280 x 960,1920 x 1080 (HD 1080)
Supported video modes	1080p
Frame rate	30 fps
Video intelligence analytic	Yes
Video streaming	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Colour depth,Contrast,Saturation,Sharpness
Privacy masking	Yes
Text caption overlay	Yes

Ethernet LAN	Yes
Networking standards	IEEE 802.1x
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQ
Quality of Service (QoS) support	Yes

Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash),MicroSDHC
Flash memory	512 MB

Ethernet LAN (RJ-45) ports	1

IP address filtering	Yes
Security algorithms	EAP-TLS,HTTPS,SNMP

Power source type	PoE
Power consumption (typical)	2.2 W
Power consumption (max)	4.3 W
Power consumption (Power over Ethernet (PoE))	4.3 W
DC output voltage	12
DC output current	2.5 A

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Width	60 mm
Depth	93 mm
Height	105 mm
Weight	137 g

Number of cameras	1
