Produktbeskrivning

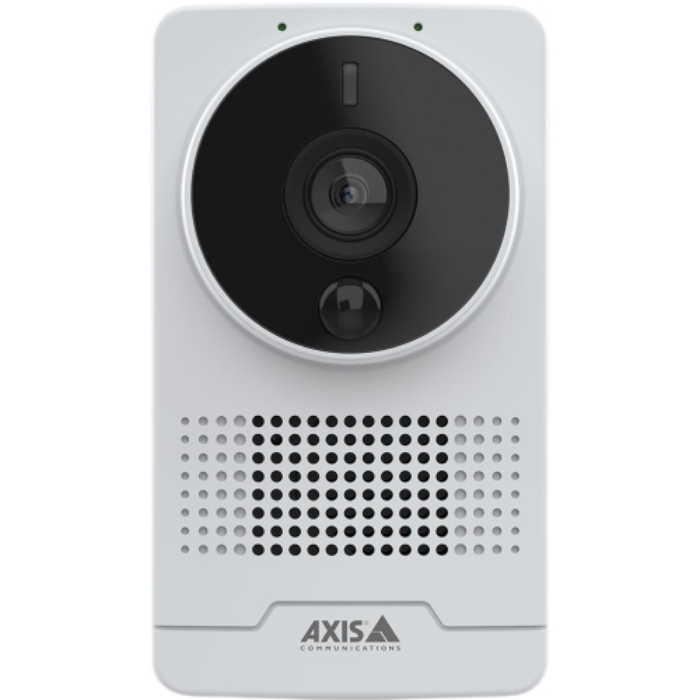

AXIS M1075-L offers excellent two-way audio communication and an IR-corrected lens to deliver professional-quality video both day-and-night. It includes a tally LED to indicate video streaming or recording. And, a passive infrared (PIR) sensor can detect movement even in total darkness. This compact camera includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Built-in cybersecurity features prevent unauthorized access and safeguard your system. Furthermore, it includes a HDMI port and with support for Session Initiation Protocol (SIP), it’s easy to integrate with IP-systems. Optional wireless kit available.



Viktiga egenskaper

Axis 02350-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3.16 mm, Fixed focal length: 2 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/U

Form factor	Box
Mounting type	Wall
Product colour	White
Housing material	Aluminium,Plastic

Minimum illumination	0.03 lx
Lens viewing angle, horizontal	103 °
Lens viewing angle, vertical	55 °
Camera shutter speed	1/19000 - 1/5 s

Sensor type	CMOS
Optical sensor size	1/2.9 "
Progressive scan	Yes

Focal length range	3.16 mm
Fixed focal length	2 mm

Night vision	Yes
LED type	IR

Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264
Video compression formats	H.264,H.265,MPEG4
Frame rate	30 fps
Video streaming	Yes
Privacy masking	Yes

Audio system full duplex	Yes
Built-in microphone	Yes

Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, SIP, LLDP

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC,SD
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1
USB port	Yes

HTTPS encryption	Yes
Security algorithms	EAP-TLS,TLS

Power source type	PoE
Power consumption (typical)	5.4 W
Power consumption (max)	12.95 W
DC output voltage	12

Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Width	93 mm
Depth	60 mm
Height	105 mm
Weight	153 g

Number of cameras	1
