Produktbeskrivning

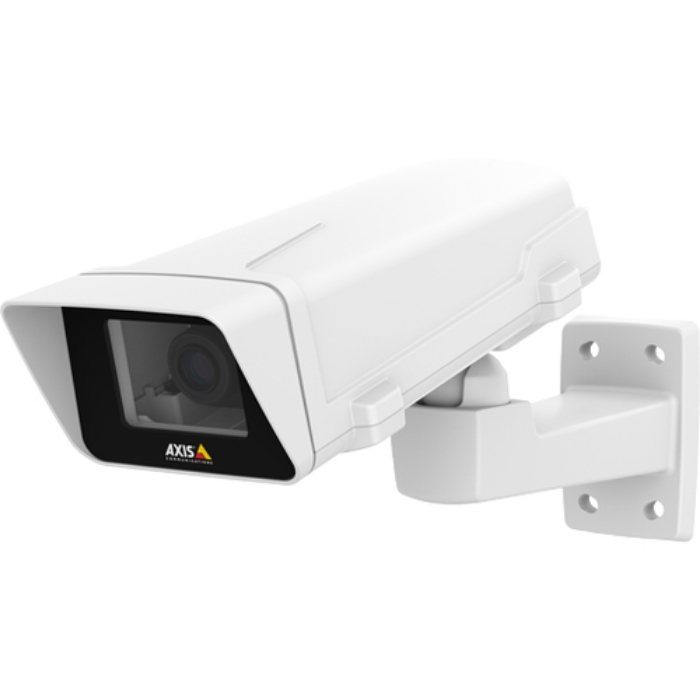

AXIS M1125-E offers a professional and affordable fixed camera suitable for a wide range of video surveillance applications, such as for retail and banking as well as libraries and other office buildings. It can be used indoors, as well as in an outdoor housing.

Outdoor-ready video surveillance

The outdoor-ready camera provides IP66- and NEMA 4X-rated as well as IK10-rated protection. The camera can withstand a temperatures range of -20 °C to 50°C (-4 °F to 122 °F).

Images optimized for forensic analysis

Supporting WDR - Forensic Capture capability, the video is highly optimized for forensic purposes and provides extreme levels of detail – even in scenes with very complex light conditions. Thanks to the automatic IR-cut filter, AXIS M1125-E can deliver images both day and night. Furthermore, the network camera includes the ability to seamlessly transition between WDR and low-light mode.

More video, less storage

AXIS M1125-E incorporates Axis’ Zipstream technology, which is a radically more efficient H.264 implementation, lowering bandwidth and storage requirements by an average 50% or more for many common 24/7 surveillance use cases.



Viktiga egenskaper

Axis M1125-E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.05 lx, Lens viewing angle, horizontal: 91°, Lens viewing angle, vertical: 49°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 3 - 10.5 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Certification	NEMA 4X IK10

Form factor	Box
Mounting type	Wall
Product colour	White
Housing material	Polymer
International Protection (IP) code	IP66

Minimum illumination	0.05 lx
Lens viewing angle, horizontal	91 °
Lens viewing angle, vertical	49 °
White balance	Auto
Camera shutter speed	0.000006993 - 2 s

Sensor type	CMOS
Optical sensor size	1/2.8 "
Progressive scan	Yes

Focal length range	3 - 10.5 mm

Maximum resolution	1920 x 1080 pixels
Total megapixels	1 MP
Video formats supported	H.264,M-JPEG
Supported graphics resolutions	160 x 90,1920 x 1080 (HD 1080)
Frame rate	30 fps
Full HD	Yes

Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP , Bonjour, UPnP, SNMP v1/v2c/v3 (MIB - II), DNS, DynDNS, NTP, RTSP, RTP, T CP, UDP, IGMP, RT CP, ICMP, DHCP, ARP, SOCKS, SSH
Cabling technology	10/100Base-T(X)

Built-in HDD	No
Card reader integrated	Yes
Flash memory	256 MB
Internal memory	512 MB

Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Interface	RJ-45

Password protection type	User
Active tampering alarm	Yes
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Security algorithms	HTTPS,SSH,SSL/TLS

Web-based management	Yes

Power source type	PoE
Power consumption (typical)	3.6 W
Power consumption (max)	5 W
Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 100 %

Width	222 mm
Depth	448 mm
Height	137 mm
Weight	1600 g

Wall mounting kit	Yes

Compliance industry standards	PoE IEEE 802.3af
