Produktbeskrivning

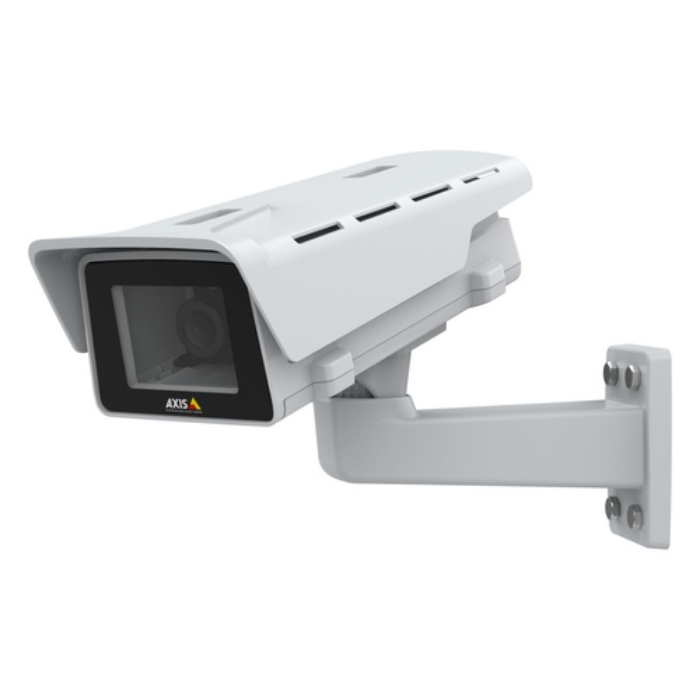

This affordable, outdoor-ready camera is easy to install and operate. Enclosed in an IP66-, IK10- and NEMA 4X-rated casing, it supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. Plus, audio input lets you record video with sound. The camera's CS-mount enables flexibility for exchangeable lenses. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
Viktiga egenskaper
Axis 02622-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.1 lx, Lens viewing angle, horizontal: 90°, Lens viewing angle, vertical: 49°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3 - 10.5 mm
Teknisk specifikation
Performance
| Type | IP security camera |
|---|
| Placement supported | Indoor & outdoor |
|---|
| Connectivity technology | Wired |
|---|
| PTZ control | Yes |
|---|
| PTZ modes | Digital PTZ |
|---|
| Wide Dynamic Range (WDR) | Yes |
|---|
| Day/night mode | Yes |
|---|
Design
| Form factor | Box |
|---|
| Mounting type | Wall |
|---|
| Product colour | White |
|---|
| International Protection (IP) code | IP66 |
|---|
| IK code | IK10 |
|---|
Camera
| Minimum illumination | 0.1 lx |
|---|
| Lens viewing angle, horizontal | 90 ° |
|---|
| Lens viewing angle, vertical | 49 ° |
|---|
Image sensor
| Sensor type | CMOS |
|---|
| Optical sensor size | 1/2.9 " |
|---|
Lens system
| Focal length range | 3 - 10.5 mm |
|---|
Night vision
| Night vision | Yes |
|---|
Video
| Maximum resolution | 1920 x 1080 pixels |
|---|
| Total megapixels | 2 MP |
|---|
| Video formats supported | H.264,H.265 |
|---|
| Video compression formats | H.264,H.265,MPEG4 |
|---|
| Supported graphics resolutions | 160 x 90 |
|---|
| Frame rate | 30 fps |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Networking standards | IEEE 802.3af,IEEE 802.3at |
|---|
Storage
| Flash memory | 512 MB |
|---|
Power
| Power source type | DC,PoE |
|---|
| Power consumption (typical) | 4.4 W |
|---|
| Power consumption (max) | 6.6 W |
|---|
| Power consumption (Power over Ethernet (PoE)) | 4.5 W |
|---|
| DC output voltage | 10,12,15,16,24,28 |
|---|
Operational conditions
| Operating temperature (T-T) | -20 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
|---|
| Operating relative humidity (H-H) | 10 - 100 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 143 mm |
|---|
| Depth | 317 mm |
|---|
| Height | 108 mm |
|---|
| Width (with stand) | 143 mm |
|---|
| Depth (with stand) | 372 mm |
|---|
| Height (with stand) | 240 mm |
|---|
| Weight (with stand) | 1800 g |
|---|
