Produktbeskrivning

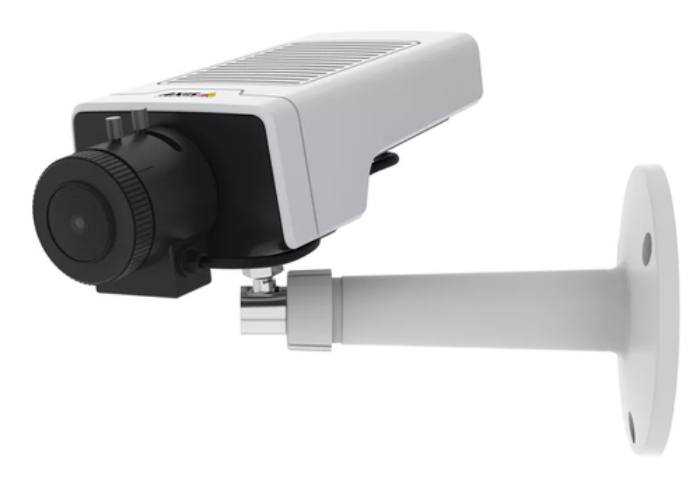

AXIS M1135 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.



Viktiga egenskaper

Axis 02483-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.1 lx, Camera shutter speed: 1/33500 - 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3 - 10.5 mm



Teknisk specifikation

Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes

Form factor	Box
Mounting type	Wall
Product colour	Black,White

Minimum illumination	0.1 lx
Camera shutter speed	1/33500 - 2 s

Sensor type	CMOS
Optical sensor size	1/2.9 "

Focal length range	3 - 10.5 mm

Night vision	Yes

Maximum resolution	1920 x 1080 pixels
Frame rate	30 fps

Audio system	2-way

Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at

Flash memory	512 MB

Active tampering alarm	Yes

Power source type	DC,PoE
Power consumption (typical)	4.4 W
Power consumption (max)	6.6 W
Power consumption (Power over Ethernet (PoE))	4.5 W
DC output voltage	10,12,15,16,24,28
Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	-20 - 50 °C

Number of cameras	1

Night mode	Yes

Harmonized System (HS) code	85258900
