Produktbeskrivning

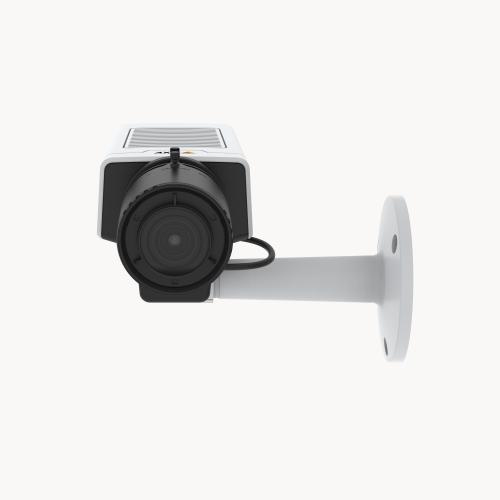

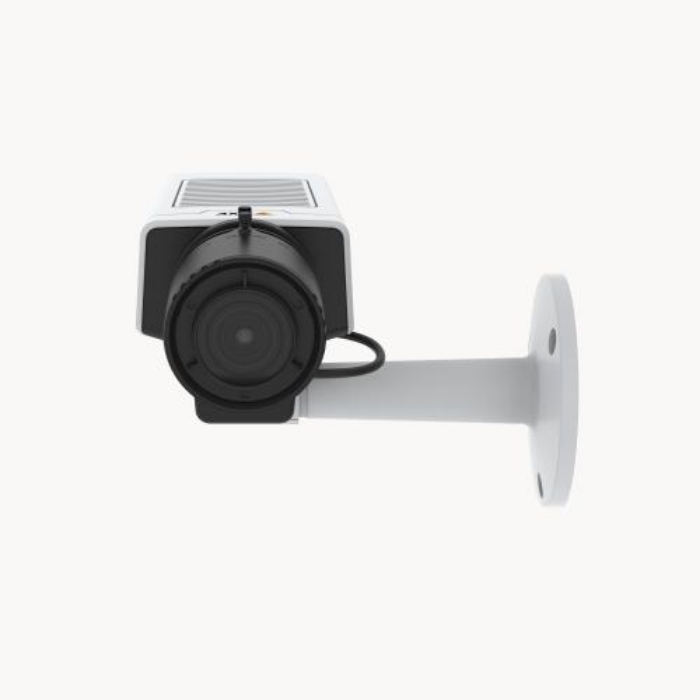

AXIS M1137 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera's CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.



Viktiga egenskaper

Axis 02484-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.17 lx, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 82°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 - 13 mm



Teknisk specifikation

Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes

Form factor	Box
Mounting type	Wall
Product colour	Black,White

Minimum illumination	0.17 lx
Lens viewing angle, horizontal	112 °
Lens viewing angle, vertical	82 °
Camera shutter speed	1/33500 - 1/5 s

Sensor type	CMOS
Optical sensor size	1/2.7 "

Focal length range	2.8 - 13 mm

Night vision	Yes

Maximum resolution	2592 x 1944 pixels
Total megapixels	5 MP
Video formats supported	H.264,H.265
Video compression formats	MPEG4
Supported graphics resolutions	160 x 120
Frame rate	30 fps

Networking standards	IEEE 802.3af,IEEE 802.3at

Flash memory	512 MB

Power source type	DC,PoE
Power consumption (typical)	4.4 W
Power consumption (max)	6.6 W
Power consumption (Power over Ethernet (PoE))	4.5 W
DC output voltage	10,12,15,16,24,28

Operating temperature (T-T)	-20 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Width	70 mm
Depth	179 mm
Height	59 mm
Width (with stand)	70 mm
Depth (with stand)	179 mm
Height (with stand)	179 mm

Number of cameras	1

Harmonized System (HS) code	85258900
