Produktbeskrivning

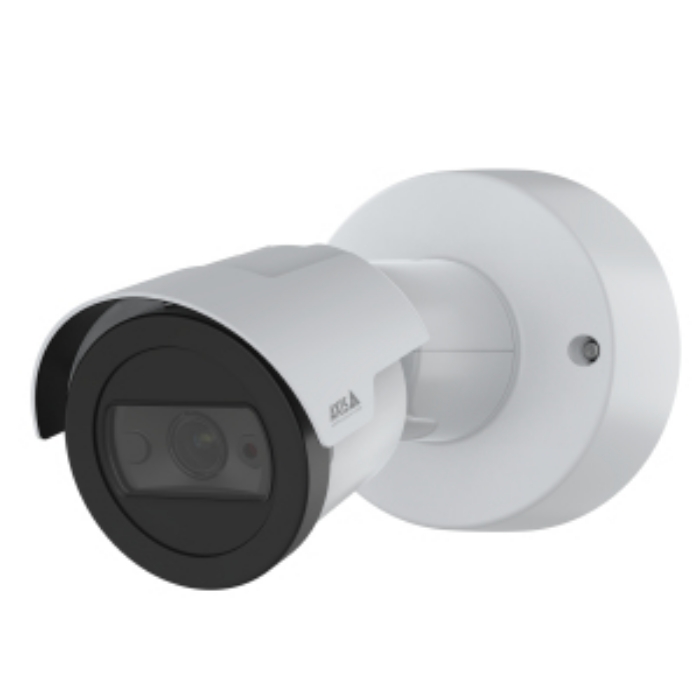

Ideal for tough environments and rough weather, AXIS M2035-LE delivers HDTV in 1080p. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Available in two lens alternatives, this IK08-rated camera offers flexible and cost-efficient installation including PoE. Edge-to-edge technology allows for smart pairing with Axis speakers. Plus, a spacious, sealed back box ensures secure cable management.



Viktiga egenskaper

Axis 02131-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Bullet. Minimum illumination: 0.16 lx, Camera shutter speed: 1/19000 - 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Night vision distance: 20 m, LED type: IR, Infra-red wavelength: 855 nm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Number of languages	12
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS
Certification	CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	Black
Housing material	Aluminium,Plastic
International Protection (IP) code	IP66, IP67
IK code	IK08

Minimum illumination	0.16 lx
Camera shutter speed	1/19000 - 1/5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.9 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes

Night vision	Yes
Night vision distance	20 m
LED type	IR
Infra-red wavelength	855 nm

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264,H.265,M-JPEG
Supported graphics resolutions	1280 x 960,1920 x 1080 (HD 1080)
Supported video modes	1080p
Video recording	Yes
Frame rate	30 fps
Privacy masking	Yes
Text caption overlay	Yes
Flip & mirror	Yes
Bit rate control	Variable Bit Rate (VBR)
Image quality adjustment	Brightness,Contrast,Sharpness

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
HTTPS encryption	Yes
Video motion detection	Yes
Digest authentication	Yes
IP address filtering	Yes
Active tampering alarm	Yes
Pixel counter	Yes
Alert notification type	E-mail
Security algorithms	256-bit AES-XTS,EAP-TLS

Power source type	PoE
Power consumption (typical)	5 W
Power consumption (max)	12.9 W

Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Diameter	101 mm
Length	170 mm
Weight	491 g

Number of cameras	1
Manual	Yes

Doesn't contain	BFR,PVC
