Produktbeskrivning

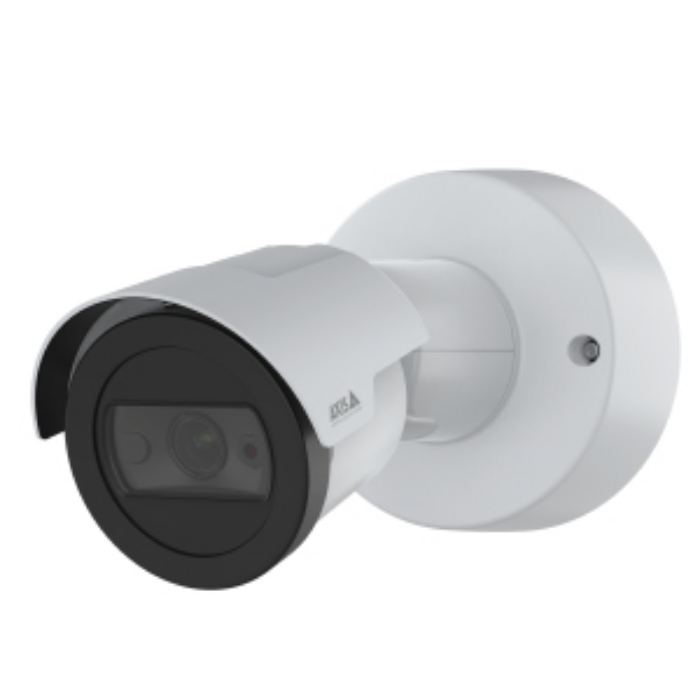

Ideal for tough environments and rough weather, AXIS M2035-LE delivers HDTV in 1080p. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Available in two lens alternatives, this IK08-rated camera offers flexible and cost-efficient installation including PoE. Edge-to-edge technology allows for smart pairing with Axis speakers. Plus, a spacious, sealed back box ensures secure cable management.



Viktiga egenskaper

Axis 02124-001. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.16 lx, Camera shutter speed: 1/19000 - 1/5 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). LED type: IR



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POL,POR,RUS
Number of languages	12
Certification	CISPR 24, CISPR 35, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Form factor	Bullet
Mounting type	Ceiling/wall
Product colour	White
Housing material	Aluminium,Plastic
International Protection (IP) code	IP66, IP67
IK code	IK08
Weatherproof	Yes

Minimum illumination	0.16 lx
Camera shutter speed	1/19000 - 1/5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.9 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes

LED type	IR

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264,H.265
Supported graphics resolutions	1280 x 960
Supported video modes	1080p
Video recording	Yes
Frame rate	30 fps
Text caption overlay	Yes
Privacy masking	Yes
Flip & mirror	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1
Quality of Service (QoS) support	Yes

Built-in HDD	No
Built-in SSD	No
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB

Password protection	Yes
HTTPS encryption	Yes
Video motion detection	Yes
Digest authentication	Yes
IP address filtering	Yes
Pixel counter	Yes
Active tampering alarm	Yes
Security algorithms	256-bit AES-XTS,EAP-TLS
Alert notification type	E-mail

Power source type	PoE
Power consumption (typical)	5 W
Power consumption (max)	12.9 W

Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Windows operating systems supported	Yes

Diameter	101 mm
Length	170 mm
Weight	491 g

Number of cameras	1

Doesn't contain	BFR,PVC
