Produktbeskrivning

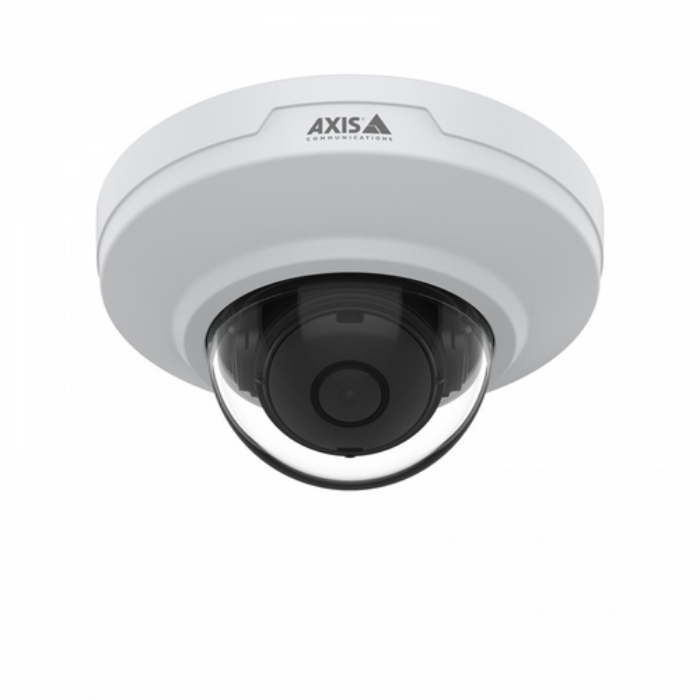

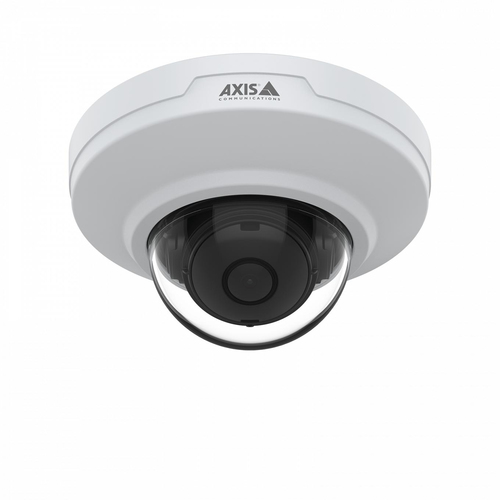

This cost-efficient mini dome features Wide Dynamic Range (WDR) to ensure clarity even when there’s both dark and light areas in the scene. A deep learning processing unit enables intelligent analytics based on deep learning on the edge. Plus, AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering. This compact, easy-to-install, vandal-resistant camera comes factory focused so there’s no manual focusing required. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.



Viktiga egenskaper

Axis 02375-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.25 lx, Angle of rotation: 175°, Lens viewing angle, horizontal: 109°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.9 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Alarm input/output	Yes
Number of languages	18
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POR,RUS,SWE,THA,TUR,VIE

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Housing material	Acrylonitrile Butadiene Styrene (ABS),Polycarbonate (PC)
Protection features	Dust resistant,Impact resistant,Water resistant
International Protection (IP) code	IP42
IK code	IK08

Minimum illumination	0.25 lx
Angle of rotation	175 °
Lens viewing angle, horizontal	109 °
Lens viewing angle, vertical	56 °
Tilt angle range	0 - 80 °
Pan range	0 - 175 °
Camera shutter speed	1/71500 - 1/5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "
Progressive scan	Yes

Focal length range	2.9 mm

Night vision	Yes

Maximum resolution	3840 x 2160 pixels
Total megapixels	8 MP
Video compression formats	H.264,H.265,M-JPEG,MPEG4
Frame rate	15 fps
Privacy masking	Yes
Image quality adjustment	Brightness,Contrast,Sharpness

Audio system	2-way

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH
Number of users	1 user(s)
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	2048 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
HTTPS encryption	Yes
Video motion detection	Yes
IP address filtering	Yes
Pixel counter	Yes
Digest authentication	Yes
Network access storage (NAS)	Yes

Power source type	PoE
Power consumption (typical)	3.6 W
Power consumption (max)	4.2 W

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Height	56 mm
Diameter	101 mm
Weight	150 g

Number of cameras	1
Manual	Yes

Warranty period	5 year(s)
Doesn't contain	BFR,PVC
