Produktbeskrivning

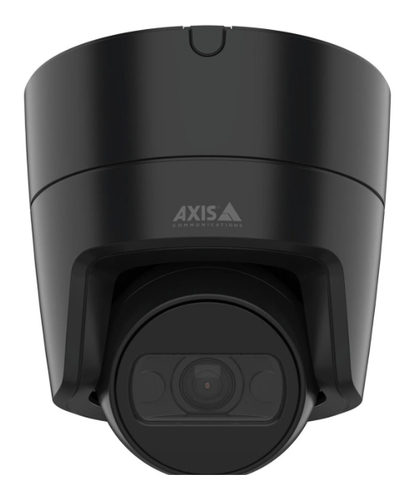

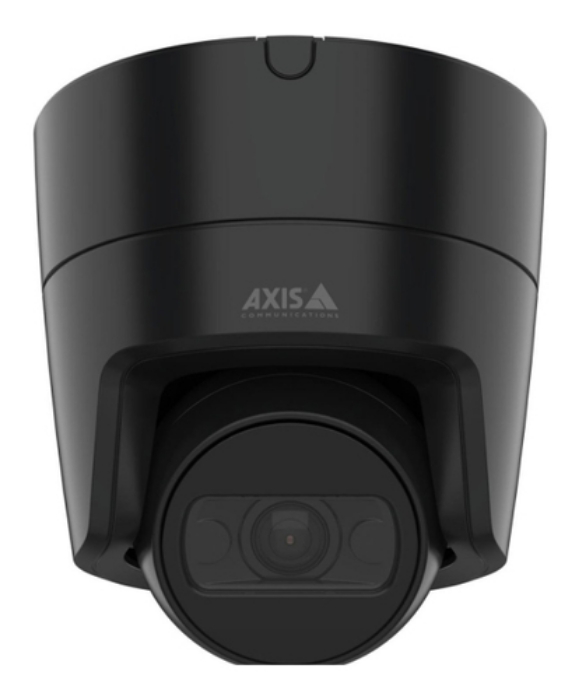

This turret-style, AI-powered dome camera delivers great 4 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.

Great image quality
AXIS M3126-LVE offers great 4 MP resolution with 130° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there’s no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene. And Axis Lightfinder technology ensures increased light sensitivity and clear colors in low light.

Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track, and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it’s available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).



Viktiga egenskaper

Axis M3126-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 130°, Lens viewing angle, vertical: 73°. Sensor type: CMOS, Optical sensor size: 50.8 / 7 mm (2 / 7"). Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Maximum operating distance	47.4 m
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Built-in light	Yes
Luminous flux	0.19 lm
Number of languages	19
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,POL,POR,RUS,SWE,THA,TUR,VIE

Form factor	Dome
Mounting type	Wall
Product colour	Black
Housing material	Polycarbonate (PC)
International Protection (IP) code	IP66
IK code	IK08
Country of origin	Sweden

Angle of rotation	95 °
Lens viewing angle, horizontal	130 °
Lens viewing angle, vertical	73 °
Tilt angle range	0 - 60 °
Pan range	0 - 180 °
Camera pixel size	2 µm
Camera shutter speed	1/38500 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	2/7 "

Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	1
Zoom capability	No
Detect distance	47.4 m
Observe distance	18.8 m
Recognize distance	9.5 m
Auto focus	No
Focus	Manual
Identify distance	4.7 m
Fixed focal length	2.4 mm
Closest focusing distance	0.5 m

Night vision	Yes
LED type	IR
Number of illumination LEDs	2
Infra-red wavelength	850 nm

Maximum resolution	2688 x 1512 pixels
Total megapixels	4 MP
Video compression formats	AVC,H.264,H.265,HEVC,MPEG4
Video recording	Yes
Frame rate	30 fps
Video intelligence analytic	Yes
Video streaming	Yes
Text caption overlay	Yes
Image stabilizer	No
Image quality adjustment	Brightness,Contrast,Saturation,Sharpness,White balance
Bit rate control	Variable Bit Rate (VBR)

Built-in speaker(s)	Yes
Audio system	2-way
Audio input channels	2.0 channels
Audio output channels	2.0 channels
Audio formats supported	AAC-LC,ADPCM,LPCM,OPUS,PCM
Sample rate	48 kHz
Built-in microphone	No

Ethernet LAN	Yes
Wi-Fi	Yes
Networking standards	IEEE 802.1AE,IEEE 802.1x
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/
Streaming method	Multicast

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
RAM capacity	1024 MB

Ethernet LAN (RJ-45) ports	1

Password protection	Yes
Password protection type	User
Digest authentication	Yes
Privacy protection	Yes
Video motion detection	Yes
Pixel counter	Yes
Mirror	Yes
Human and vehicle targets classification	Yes
Motion sensor	Yes
Intelligent Video Surveillance (IVS) system features	Human detection,Line crossing detection,Moving object,Vehicle detection
Motion sensor technology	Passive infrared (PIR) sensor

Cloud-managed	Yes
Management software	AXIS Object Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection, active tampering alarm

Power source type	PoE
Power consumption (typical)	4 W
Power consumption (Power over Ethernet (PoE))	10.5 W

Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Width	46 mm
Height	93 mm
Diameter	101 mm
Weight	390 g

Number of cameras	1
Mounting kit	Yes

Warranty period	5 year(s)
Doesn't contain	PVC
Compliance certificates	BIS,BSMI,CE,EAC,Electromagnetic Compatibility (EMC),KC,RCM,Trade Agreements Act (TAA),UL,VCCI,cUL
