Produktbeskrivning

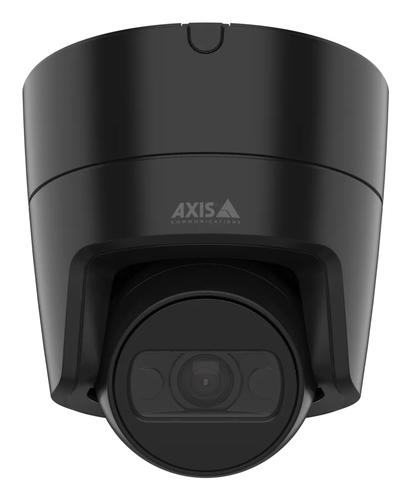

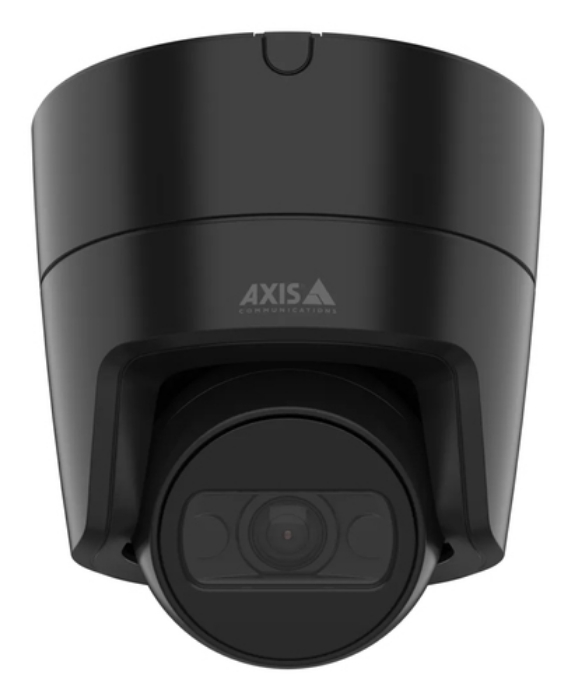

This turret-style, AI-powered dome camera delivers great 8 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.

Great image quality
AXIS M3128-LVE offers great 8 MP resolution with 110° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there’s no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene.

Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.

Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it’s available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).



Viktiga egenskaper

Axis M3128-LVE. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.22 lx, Angle of rotation: 95°, Vertical field of view (thermal module): 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 55 dB



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Certification	CSA, UL/cUL, BIS, CE, KC, EAC, VCCI, RCM, BSMI EN 55024, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES(A)/NMB(A) Japan: VCCI Class A Korea: KC KN35, KC KN32 C

Form factor	Dome
Mounting type	Ceiling
Product colour	Black
Housing material	Plastic
Protection features	Impact resistant,Weather resistant
International Protection (IP) code	IP66
IK code	IK08
Weatherproof	Yes

Minimum illumination	0.22 lx
Angle of rotation	95 °
Vertical field of view (thermal module)	60 °
Horizontal field of view (thermal module)	110 °
Tilt angle range	0 - 60 °
Pan range	-180 - 180 °
Camera pixel size	1.45 µm
Camera shutter speed	1/71500 - 2 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "

Sensor type (panoramic camera)	CMOS
Signal-to-Noise Ratio (SNR) (panoramic camera)	55 dB

Number of lenses	1
Focal length range	2.9 mm
Identify distance (wide)	8 m
Observe distance (wide)	31.7 m
Recognize distance (wide)	16 m
Normal focusing range	0.5 m
Detect distance (wide)	80 m

Night vision	Yes
Night vision distance	20 m
LED type	IR
Infra-red wavelength	850 nm

Maximum resolution	3840 x 2160 pixels
Video formats supported	AVC,H.264,H.265,HEVC
Video compression formats	MPEG,MPEG4
Supported graphics resolutions	160 x 90,3840 x 2160
Supported video modes	1080p
Frame rate	15 fps
Video streaming	Yes

Built-in speaker(s)	Yes
Audio system	2-way
Audio formats supported	AAC-LC,ADPCM,LPCM,PCM
Sample rate	48 kHz
Signal-to-Noise Ratio (SNR)	55 dB

Networking standards	IEEE 802.1AE,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/

Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	2048 MB

Password protection	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Active tampering alarm	Yes
Pixel counter	Yes
Video motion detection	Yes
Intelligent Video Surveillance (IVS) system features	Human detection,Vehicle detection
Security algorithms	HTTPS

Power source type	PoE
Power consumption (typical)	4.3 W
Power consumption (max)	10.5 W

Operating temperature (T-T)	-30 - 50 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %
Storage relative humidity (H-H)	5 - 95 %

Height	93 mm
Diameter	101 mm
Weight	390 g

Number of cameras	1
Manual	Yes

Compliance certificates	Electromagnetic Compatibility (EMC),Trade Agreements Act (TAA)
Doesn't contain	PVC
