Produktbeskrivning

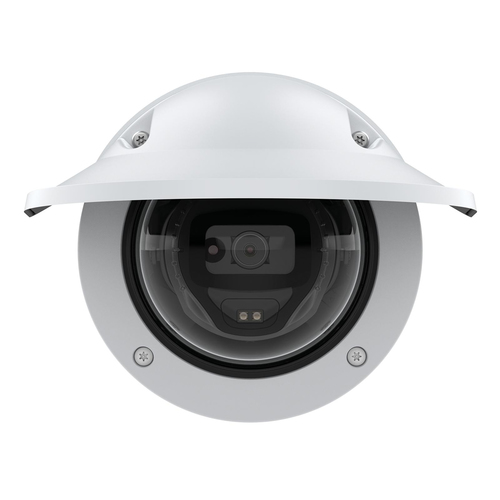

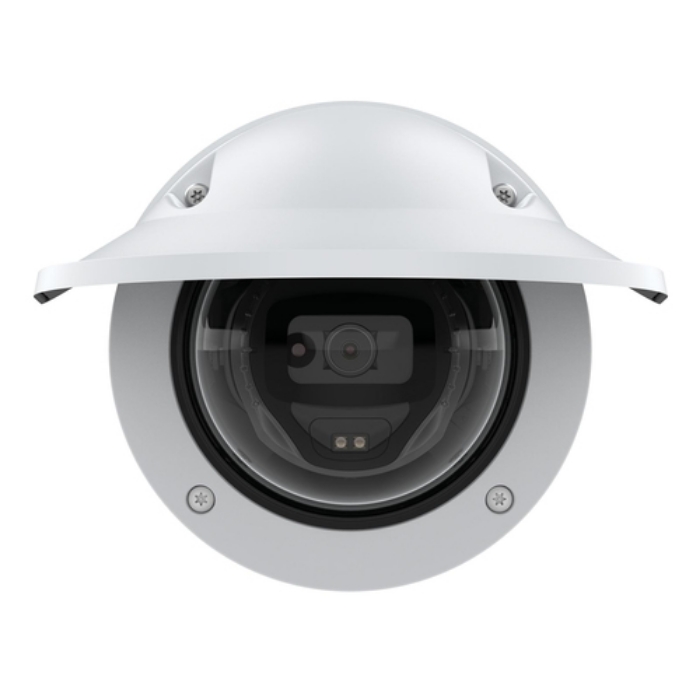

This cost-effective fixed focal dome offers Lightfinder, Forensic WDR, and OptimizedIR, and ensures excellent image quality under any light conditions. Built on ARTPEC-8, it includes a deep learning processing unit enabling powerful analytics based on deep learning on the edge. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities. And AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate for instance a microphone to extend the value of your system. Furthermore, built-in cybersecurity features safeguard your system.
Viktiga egenskaper
Axis 02371-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.14 lx, Angle of rotation: 190°, Lens viewing angle, horizontal: 101°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Closest focusing distance: 1 m
Teknisk specifikation
Performance
| Type | IP security camera |
|---|
| Placement supported | Indoor & outdoor |
|---|
| Connectivity technology | Wired |
|---|
| PTZ control | Yes |
|---|
| Wide Dynamic Range (WDR) | Yes |
|---|
| Day/night mode | Yes |
|---|
Design
| Form factor | Dome |
|---|
| Mounting type | Ceiling/wall |
|---|
| Product colour | White |
|---|
| Housing material | Plastic,Polycarbonate (PC) |
|---|
| International Protection (IP) code | IP66 |
|---|
| IK code | IK10 |
|---|
| Fog proof | Yes |
|---|
Camera
| Camera pan control | Yes |
|---|
| Minimum illumination | 0.14 lx |
|---|
| Angle of rotation | 190 ° |
|---|
| Lens viewing angle, horizontal | 101 ° |
|---|
| Lens viewing angle, vertical | 55 ° |
|---|
| Tilt angle range | -10 - 80 ° |
|---|
| Pan range | 0 - 190 ° |
|---|
| Camera shutter speed | 1/37000 - 2 s |
|---|
Image sensor
| Sensor type | CMOS |
|---|
| Optical sensor size | 1/2.9 " |
|---|
| Progressive scan | Yes |
|---|
Lens system
| Zoom capability | Yes |
|---|
| Maximum aperture number | 2 |
|---|
| Closest focusing distance | 1 m |
|---|
Night vision
| Night vision | Yes |
|---|
| LED type | IR |
|---|
Video
| Maximum resolution | 1920 x 1080 pixels |
|---|
| Video compression formats | H.264,H.265 |
|---|
| Frame rate | 30 fps |
|---|
| Video streaming | Yes |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet interface type | Fast Ethernet |
|---|
| Networking standards | IEEE 802.1x |
|---|
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, |
|---|
Storage
| Built-in HDD | No |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash),MicroSDHC,MicroSDXC |
|---|
| Flash memory | 8192 MB |
|---|
| Internal memory | 1024 MB |
|---|
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Microphone in | Yes |
|---|
Security
| Security algorithms | EAP-TLS,HTTPS |
|---|
| HTTPS encryption | Yes |
|---|
Power
| Power source type | PoE |
|---|
| Power consumption (Power over Ethernet (PoE)) | 4.8 W |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 65 °C |
|---|
| Operating relative humidity (H-H) | 10 - 100 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Height | 102 mm |
|---|
| Diameter | 149 mm |
|---|
| Weight | 783 g |
|---|
Packaging content
| Number of cameras | 1 |
|---|
