Produktbeskrivning

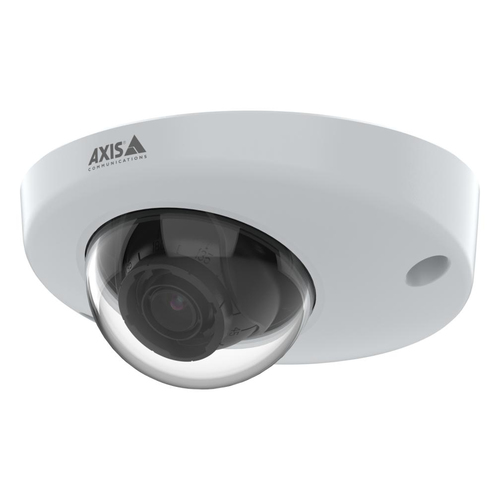

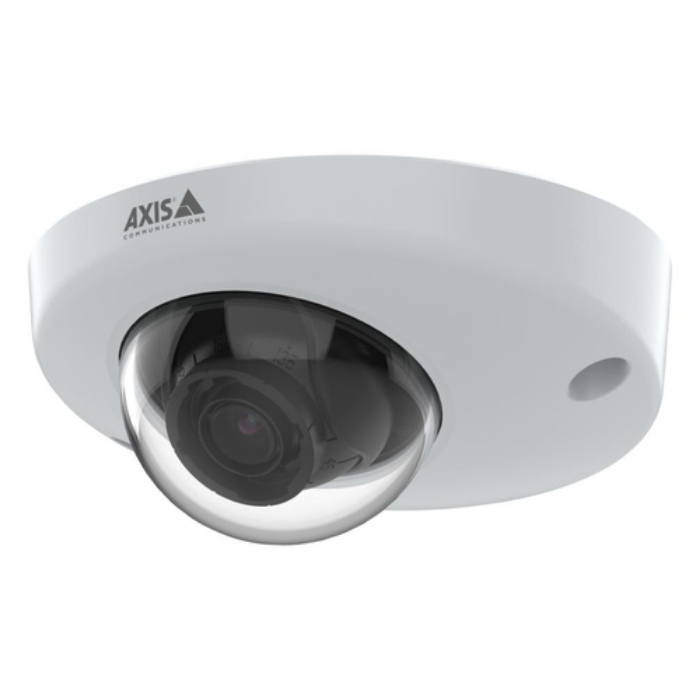

This compact and discreet 2 MP onboard camera complies with transportation-industry regulations including fire-safety for buses. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a bus. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.



Viktiga egenskaper

Axis 02501-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 250°, Lens viewing angle, horizontal: 88°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Lens diameter: 3.6 mm, Closest focusing distance: 0.3 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Built-in processor	Yes
Processor model	S6LM55
Number of languages	18
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,KOR,POL,POR,RUS,SWE,THA,TUR,VIE

Form factor	Dome
Mounting type	Ceiling
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP66, IP67
IK code	IK10

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.04 lx
Angle of rotation	250 °
Lens viewing angle, horizontal	88 °
Lens viewing angle, vertical	47 °
Tilt angle range	15 - 90 °
Pan range	-30 - 30 °
Camera shutter speed	1/19000 - 1/5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.9 "

Number of lenses	1
Lens diameter	3.6 mm
Maximum aperture number	2
Closest focusing distance	0.3 m

Night vision	No

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	AVC,H.264,H.265,HEVC,M-JPEG,MPEG4
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Image quality adjustment	Brightness,Contrast,Mirror,Sharpness

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, HTTP, HTTPSc , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP,
Streaming method	Multicast

Built-in HDD	No
Flash memory	512 MB
Internal memory	1024 MB

Password protection	Yes
Security algorithms	802.1x RADIUS
HTTPS encryption	Yes
IP address filtering	Yes
Pixel counter	Yes
Digest authentication	Yes

Power source type	PoE
Power consumption (max)	3.8 W
Power consumption (Power over Ethernet (PoE))	2.2 W

Operating temperature (T-T)	-30 - 55 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 100 %

Height	50 mm
Diameter	110 mm
Weight	241 g

Number of cameras	1
Manual	Yes

Doesn't contain	BFR,PVC
Compliance certificates	CE,KC,REACH,RoHS,Trade Agreements Act (TAA),UKCA,WEEE
Sustainability compliance	Yes
