Produktbeskrivning

This discreet dome delivers great images in any light conditions. With a deep learning processing unit, it offers intelligent analytics based on deep learning on the edge. Plus, Axis Edge Vault safeguards your device.

Great images, every time

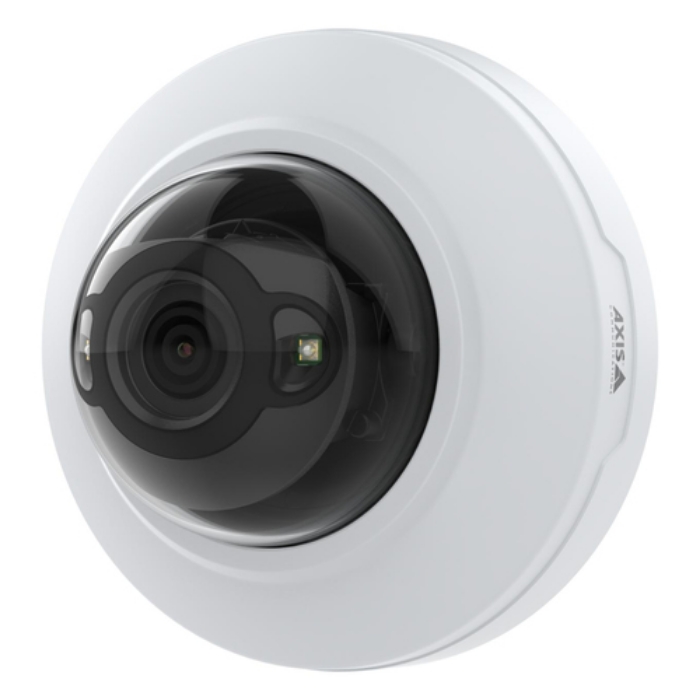

Ideal for indoor surveillance applications, AXIS M4215-LV delivers great image quality in 2 MP. With a varifocal lens, this affordable camera offers a flexible field of view. Plus, with remote zoom and auto focus capabilities, it ensures sharp high resolution video with great details where needed. Thanks to Lightfinder and WDR, it provides details even in challenging light conditions. And Axis OptimizedIR allows for surveillance in pitch darkness. Furthermore, Axis Edge Vault provides a hardware-based cybersecurity platform that guarantees the device’s integrity and protects it from unauthorized access.

Extended possibilities
AXIS M4215-LV offers great possibilities to add value to your camera and extend the functionality of your surveillance system. For instance, with an HDMI port and AXIS Face Detector you can display live video and face detection on a public viewing monitor to help deter theft. Plus, you can add audio or I/O connectivity using AXIS T61 Series. It offers advanced analytics based on deep learning on the edge to deliver valuable metadata facilitating efficient forensic search capabilities in live or recorded video. And AXIS Object Analytics including time in area feature lets you track whenever an object stays in a defined area longer than a user-defined time, for example, to detect loitering.

Small and discreet
Compact and flexible in design, this varifocal dome offers flexible and discreet installation. With a wide range of accessories, it can be installed almost anywhere making it ideal for any location where discreet monitoring is needed. And it can be easily repainted to blend in seamlessly with any environment. This IK08-rated camera is protected against redirection, defocusing, and impact. A smoked dome is available as an accessory to disguise which way the camera is pointing. Furthermore, thanks to its vandal-, impact-, and dust-resistant casing you can be confident it’s always safe and secure.



Viktiga egenskaper

Axis 02677-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.14 lx, Angle of rotation: 105°, Lens viewing angle, horizontal: 93 - 47°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Maximum resolution: 1920 x 1080 pixels, Total megapixels: 2 MP, Video compression formats: H.264, H.265, M-JPEG



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Infrared (IR) cut-off filter	Yes
Day/night mode	Yes
Built-in processor	Yes
Languages support	CHI (SIMPL),CHI (TR),CZE,DEU,DUT,ENG,ESP,FIN,FRE,ITA,JPN,KOR,RUS,SWE,THA,TUR,VIE
Number of languages	19
Certification	CSA, UL/cUL, BIS, UKCA, CE, KC, EAC, VCCI, RCM

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP42
IK code	IK08

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.14 lx
Angle of rotation	105 °
Lens viewing angle, horizontal	93 - 47 °
Lens viewing angle, vertical	50 - 26 °
Tilt angle range	-40 - 65 °
Pan range	-180 - 180 °
Camera shutter speed	1/25000 - 1/5 s

Sensor type	CMOS
Optical sensor size	1/2.8 "
Progressive scan	Yes

Zoom capability	Yes
Maximum aperture number	2.6
Minimum aperture number	1.7

Night vision	No

Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264,H.265,M-JPEG
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction,3D noise reduction
Privacy masking	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP,
Quality of Service (QoS) support	Yes

Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1

Password protection	Yes
Pixel counter	Yes
Video motion detection	Yes
Network access storage (NAS)	Yes
Digest authentication	Yes
IP address filtering	Yes
Active tampering alarm	Yes
Mirror	Yes

Power source type	PoE
Power consumption (max)	9.5 W
Power consumption (Power over Ethernet (PoE))	4.8 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-30 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Height	71 mm
Diameter	120 mm
Weight	366 g

Number of cameras	1
Manual	Yes
