Produktbeskrivning

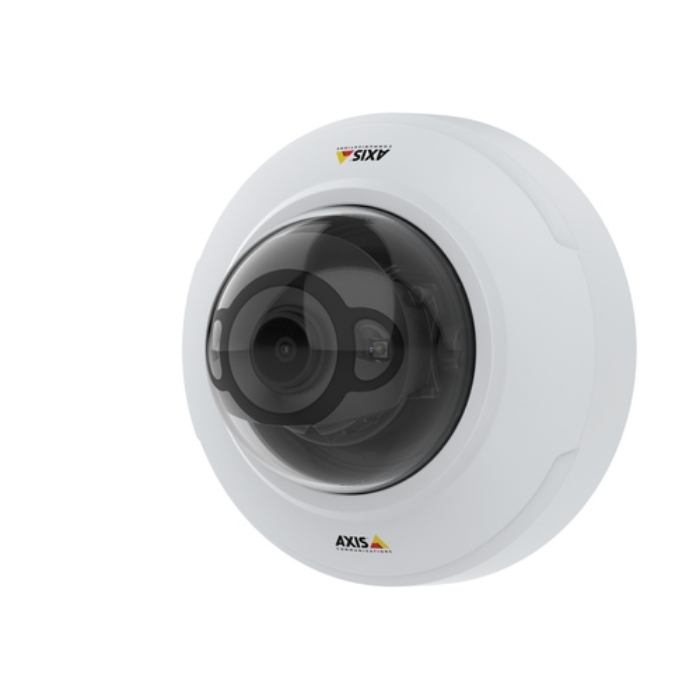

The compact and discreet AXIS M4216-LV delivers great images, day and night. With a deep learning processing unit (DLPU), it’s possible to take advantage of intelligent applications based on deep learning on the edge. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Designed to blend seamlessly into any environment, the camera can be repainted and offers a wide range of accessories for discreet monitoring. It features an HDMI port and offers the flexibility to add audio and I/O connectivity using accessories.



Viktiga egenskaper

Axis 02113-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.18 lx, Tilt angle range: -40 - 65°, Pan range: -180 - 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 3 - 6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
PTZ modes	Digital PTZ
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Languages support	CHI (SIMPL),CHI (TR),DEU,ENG,ESP,FRE,ITA,JPN,KOR,POR,RUS
Number of languages	11

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Housing material	Aluminium,Polycarbonate (PC)
International Protection (IP) code	IP42
IK code	IK08

Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.18 lx
Tilt angle range	-40 - 65 °
Pan range	-180 - 180 °
Camera shutter speed	1/37500 - 1/5 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.7 "
Progressive scan	Yes

Number of lenses	1
Zoom capability	Yes
Focal length range	3 - 6 mm

Night vision	Yes
Night vision distance	20 m
LED type	IR
Infra-red wavelength	855 nm

Maximum resolution	2304 x 1728 pixels
Total megapixels	4 MP
Video compression formats	H.264,H.265
Supported video modes	720p,1080p
Frame rate	30 fps
Video streaming	Yes
Privacy masking	Yes
Flip & mirror	Yes
Text caption overlay	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Networking standards	IEEE 802.1x,IEEE 802.3af,IEEE 802.3at
Supported network protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP
Quality of Service (QoS) support	Yes

Built-in HDD	No
Built-in SSD	No
Compatible memory cards	MicroSD (TransFlash),MicroSDHC,MicroSDXC,SD
Flash memory	512 MB
Internal memory	1024 MB

Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1

Password protection	Yes
Security algorithms	EAP-TLS
Alert notification type	E-mail,Text alert message
IP address filtering	Yes
Video motion detection	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes

Power source type	PoE
Power consumption (typical)	5 W
Power consumption (max)	9.7 W

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %

Windows operating systems supported	Yes

Height	71 mm
Diameter	121 mm
Weight	375 g

Number of cameras	1

Doesn't contain	BFR,PVC
